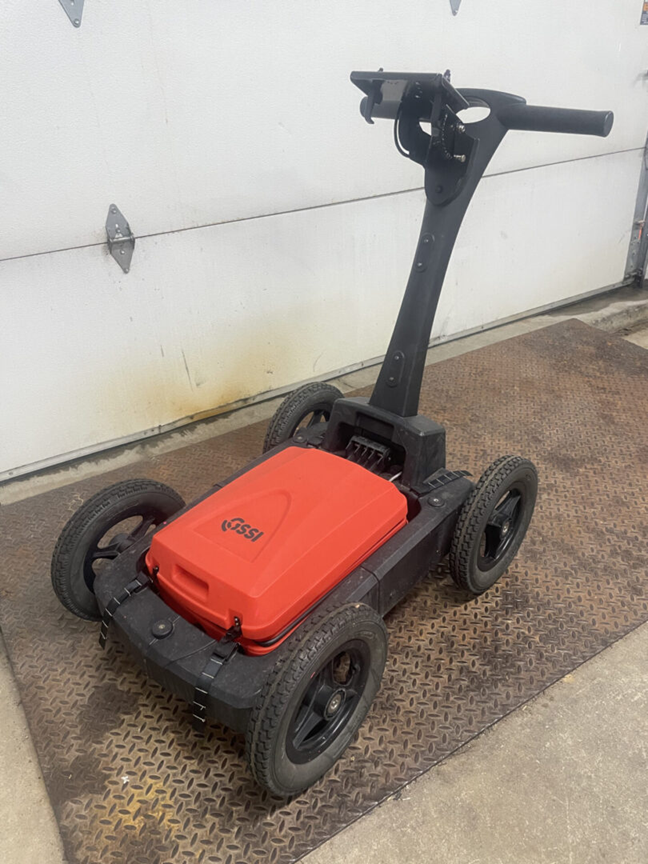

Radar GSSI UtilityScan DF

#107610

UtilityScan™ DF is GSSI’s premium GPR unit for utility locating. It incorporates an innovative digital dual-frequency antenna (300 and 800 MHz) and an easy-to-use touchscreen interface to view shallow and deep targets simultaneously in a single scan. With an operation life of up to eight hours and a survey speed up to 10 km/h
(6.25 mph), data collection is fast and efficient.

Locate the position and depth of metallic and non-metallic objects, including service utilities such as gas, communications, sewer lines as well as underground storage tanks and PVC pipes.

Typical Uses for UtilityScan DF Include:

  • Utility detection – metallic and non-metallic
  • Environmental remediation
  • Damage prevention
  • Geological investigation
  • Archaeology
  • Forensics
  • Road inspection

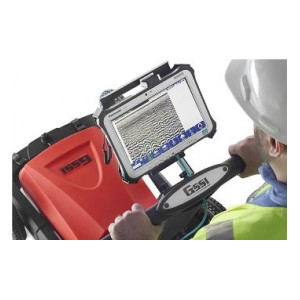

Controller
System Panasonic Toughpad ® FZ-G1
Data Storage Internal Memory 128 GB SSD
Display Enhanced 10.1" WUXGA 1920x1200 with LED backlighting
Processor Intel® Core i5-2557M vPro
Ports USB 3.0, Ethernet and Serial
Batteries Li-Ion battery pack (10.8 V typical 9300 mAh)
Operating Temperature -28°C to 60°C (-20°F to 140°F)
Weight 2.7 kg (6 lbs)
Environmental IP65
Drop Spec MIL-STD-810G
GSSI System Software
Scan Rate 150 scans/sec at 512 samples/scan
Scan Intervals 50 or 100 scans/meter (15 or 30 scans/foot)
Output Data Resolution 32-bit
Operating Mode Survey Wheel
Depth Ranges
Metric
High Frequency
 Low Frequency
0.50 m 1 m
0.75 m 2 m
1 m 3 m
2 m 4 m
3 m 5 m

English
High Frequency
 Low Frequency
12 in 3 ft
18 in 6 ft
3 ft 9 ft
6 ft 12 ft
9 ft 15 ft
System Speed up to 600 kHz, 200 kHz in North America
Data Collection Speed up to 10 km/h (6.25 mph)
Gain Manual or automatic, 1-8 gain points (-42 to + 126 dB)
Real-time Filters Stacking, Background Removal
Advanced Real-time Filter Signal floor tracking
Display Mode Linescan Mode: high frequency data only or low frequency data only displayed
Dual Mode: high and low frequency data displayed in split screen view
Blend Mode: high and low frequency data combined in single view
Data Format RADAN® (.dzt)
Diagnostic GPS status and battery
Digital Dual Frequency Smart Antenna
Number of Hardware Channels 2 (two)
Frequencies 300 and 800 MHz
Typical Range 4 m / 12 ft
Maximum Range 7 m / 21 ft
Connectors Digital control, power, survey wheel, marker, serial RS232, accessory connector
GPS Data stored internally
Operating Temperature -10°C to 50°C (14°F to 122°F)
Weight 5 kg (12 lbs)
Dimensions 33.5 x 31 x 15 cm (13.2 x 12.2 x 5.9 in)
Environmental IP65
Cart
Model 655

4-wheel, compact survey cart
Internal, integrated survey wheel encoder
Removable, 12-inch wheels
Compact, weather resistant design
Antenna centerline to front of cart: 38.2 cm (15 in)
Dimensions: 61.7 x 100 x 102.4 cm (24.3 x 39.4 x 40.3 inches)
Total System Weight: 29 kg (66 lbs)
Model 625 2-wheel, lightweight survey cart
Internal, integrated survey wheel encoder
Removable, 24-inch wheels
Lightweight and foldable design
Antenna centerline to front of cart: 28 cm (11 in)
Dimensions: 136.1 x 131.6 x 63.2 cm (53.6 x 51.8 x 24.9 inches)
Total System Weight: 23.1 kg (51 lbs)
System Panasonic ToughBook® H2
Data Storage Internal Memory 128 GB SSD
Display Enhanced 10.1 XGA sunlight-readable LED, 1024 x 768 Dual Touch Display
Processor Intel® Core i5-2557M vPro
Ports USB 2.0, Ethernet and Serial
Batteries Hot-swappable Li-Ion battery packs (four total)
Operating Temperature -28°C to 60°C (-20°F to 140°F)
Weight 2.7 kg (6 lbs)
Environmental IP65
Drop Spec MIL-STD-810G

GSSI System Software
Scan Rate 150 scans/sec at 512 samples/scan
Scan Intervals 50 or 100 scans/meter (15 or 30 scans/foot)
Output Data Resolution 32-bit
Operating Mode Survey Wheel
Depth Ranges
Metric
High Frequency
 Low Frequency
0.50 m 1 m
0.75 m 2 m
1 m 3 m
2 m 4 m
3 m 5 m

English
High Frequency
 Low Frequency
12 in 3 ft
18 in 6 ft
3 ft 9 ft
6 ft 12 ft
9 ft 15 ft
System Speed up to 600 kHz, 200 kHz per channel in North America
Data Collection Speed up to 10 km/h (6.25 mph)
Gain Manual or automatic, 1-8 gain points (-42 to + 126 dB)
Real-time Filters Stacking, Background Removal
Advanced Real-time Filter Signal floor tracking
Display Mode Linescan Mode: high frequency data only or low frequency data only displayed
Dual Mode: high and low frequency data displayed in split screen view
Blend Mode: high and low frequency data combined in single view
Data Format RADAN (.dzt)
Diagnostic GPS status and battery

Digital Dual Frequency Smart Antenna
Number of Hardware Channels 2 (two)
Frequencies 300 and 800 MHz
Typical Range 4 m / 12 ft
Maximum Range 7 m / 21 ft
Connectors Digital control, power, survey wheel, marker, serial RS232, accessory connector
GPS Data stored internally
Operating Temperature -10°C to 50°C (14°F to 122°F)
Weight 5 kg (12 lbs)
Dimensions 33.5 x 31 x 15 cm (13.2 x 12.2 x 5.9 in)
Environmental IP65

Cart
Model 653 4-wheel compact survey cart
Internal, integrated survey wheel encoder
Removable, 12-inch wheels
Compact, weather resistant design
Antenna centerline to front of cart: 38.2 cm (15 in)
Dimensions 61.7 x 100 x 102.4 cm (18 x 39 x 26 inches)
Weight 21.7 kg (48 lbs true weight) (132 lbs dimensional weight)



Total shipping weight 150 lbs in (2) pcs

There is an optional GPS Mount for this device.

Dimensions

39 x 26 x 18, 24 x 19 x 9 inches

Weight

115 lbs

Price

$19,000.00

Purchase

Downloads

Click here to download

Ask a question about this item

*(Does not include shipping or insurance)
