Electromagnetic Geonics EM-34 XL

#101120

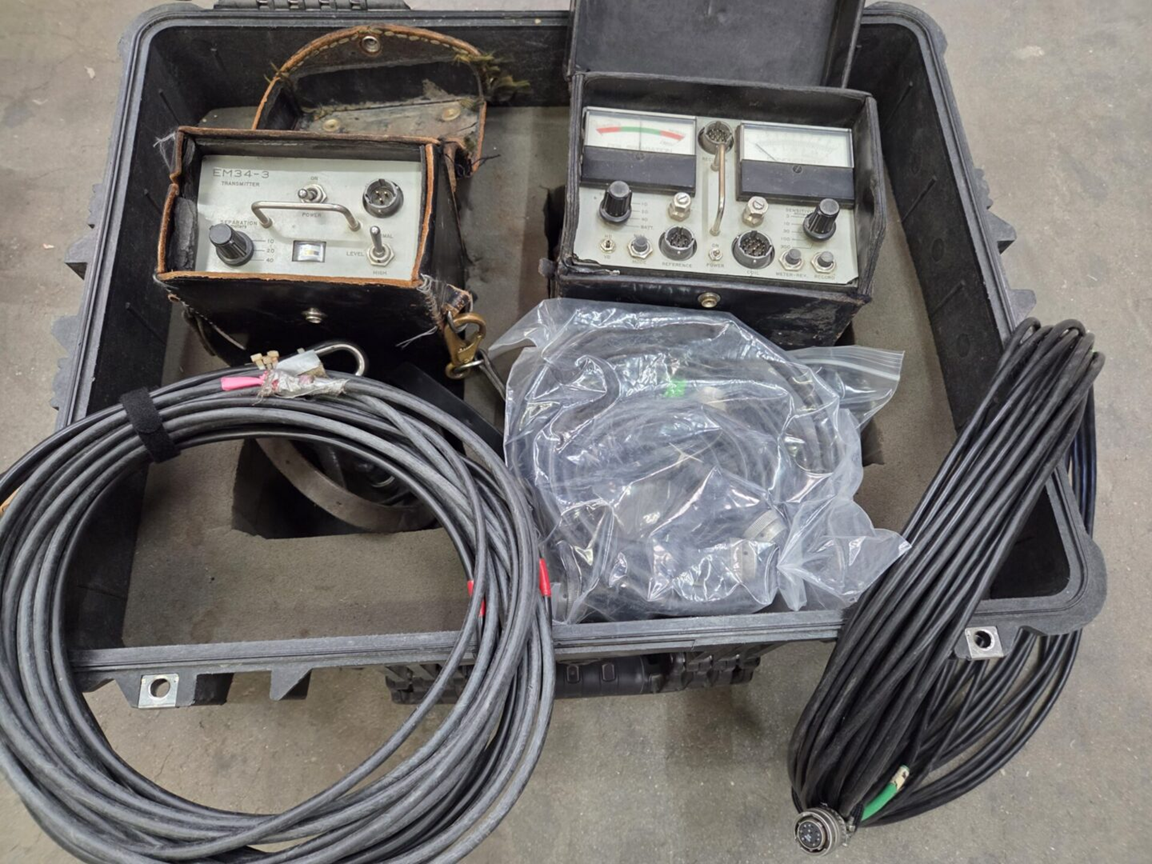

Included Accessories: Transmitter, Receiver, (2) coils, (3) cables - 10m,20m,40m

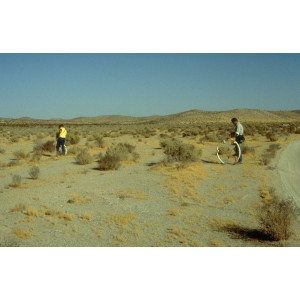

The EM34-3 is a fast, simple to operate, cost-effective instrument for the engineering geophysicist, geologist and hydrogeologist alike and has been particularly successful for mapping deeper groundwater contaminant plumes and for groundwater exploration.

Using the same patented inductive method as the EM31, the EM34-3 uses 3 intercoil spacings to give variable depths of exploration down to 60 meters. The EM-34 XL was developed to provide greater signal detection ability at the longer spacings. The XL employs a larger coil ~1.0m in diameter and it weighs about 1.5kg more than the standard coil.

In regions of particularly high cultural and atmospheric noise the higher powered EM34-3XL improves the signal to noise ratio by a factor of 10 at the 40 m spacing and by 4 at the 10 m and 20 m spacing.


SPECIFICATIONS

MEASURED QUANTITIES
 Apparent conductivity in millisiemens per metre (mS/m)

PRIMARY FIELD SOURCE
 Self-contained dipole transmitter

SENSOR
 Self-contained dipole receiver

REFERENCE CABLE
 Lightweight, 2 wire shielded cable

INTERCOIL SPACINGS &
OPERATING FREQUENCY
 10 m at 6.4 kHz
20 m at 1.6 kHz
40 m at 0.4 kHz

POWER SUPPLY
 Transmitter: 8 disposable or rechargeable “D” cells
 Receiver: 8 disposable or rechargeable “C” cells

CONDUCTIVITY RANGES
 Conductivity: 10, 100, 1k mS/m

MEASUREMENT RESOLUTION
 +/- 0.1% of full scale

MEASUREMENT ACCURACY
 +/- 5% at 20 mS/m

NOISE LEVELS
 Conductivity: 0.2 mS/m (can be greater in regions of high power line interference)

DIMENSIONS
 Rx Console: 19x13.5x26 cm
Tx Console: 15.5x8x26 cm
Rx & Tx Coil: 63 cm diameter
EM34-3XL Tx Coil: 100 cm
Case: 27.5x75x75 cm

WEIGHTS
 Instrument: 20.5 kg; XL: 26.5 kg
 Shipping: 43 kg; XL: 51 kg



Dimensions

42 X 42 X 8 inches

Weight

88 lbs
