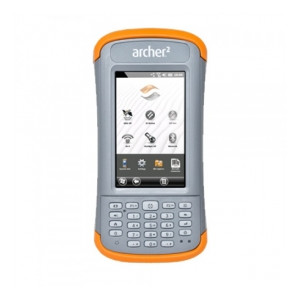

Electromagnetic Juniper Systems Archer2 Field PC

#101461

• Size: 3.6" w x 7.25" l x 1.5" d (91 mm x 184 mm x 38 mm)
• Weight: 1.3 lbs (590 g)
• Durable hardened plastic in a shear-proof and shock-resistant design
• Strong chemical resistance
• Comfortable, wide hand strap
• Easy-to-grip, impact-absorbing bumpers, safety orange or tactical gray



Battery

• Intelligent Li-Ion battery 3.7VDC @ 10600mAh, 38.7Whr
• Operates for up to 20 hours on one charge
• Charges in 2 to 4 hours
• Battery changeable in field
• Optimized for excellent performance in cold temperatures



Display

• Active viewing area: 4.3" (109 mm) WVGA LCD TFT (800x480)
• High visibility backlit LCD
• Portrait or landscape orientation



Touchscreen

• Projected capacitive touch interface “optically bonded” to display for increased visibility
• Chemically-strengthened glass



Keyboard

• Adjustable LED backlit keys
• Five-way directional navpad
• Numeric keypad (6 user-reassignable)
• OEM configurable/customizable



Juniper RuggedTM

• IP68 waterproof and dustproof
• Operating temperature: -22F to 140F (-30C to 60C), Note: Bluetooth® wireless technology is rated to –4F (–20C)
• Storage temperature: -22F to 158F (–30C to 70C)
• Shockproof: multiple drops from 5' (1.5 m) onto concrete
• MIL-STD-810G test procedures: Method 500.5 Low Pressure (Altitude); Method 501.5 High Temperature; Method 502.5 Low Temperature; Method 503.5 Temperature Shock; Method 506.5 Rain; Method 507.5 Humidity; Method 510.5 Sand and Dust; Method 512.5 Immersion; Method 514.6 Vibration; Method 516.6 Shock
• Optional Class I, II, & III, Div 2 non-incendive rating for use in hazardous locations



Ports

• COM1, RS-232C 9-pin D connector with 5VDC power output
• USB host (Full A), USB client (Micro B)
• 12, 24VDC input, 10-36V unregulated
• 3.5 mm audio jack, supports speaker/ microphone or stereo output (pin detect)
• I/O module OEM configurable/customizable
• Optional docking port connections for charging and USB communication
• 1.0GHz ARM Cortex A8 i.MX53 processor

OS & Software

• Microsoft® Windows Embedded Handheld 6.5.3
• Microsoft Office Mobile 2010* (Optional)
• Multiple languages (English, French, Spanish, German, Portuguese)

• 512 MB RAM
• 8GB flash storage
• User-accessible micro SD/SDHC slot

Wireless Connectivity Options

• Bluetooth® wireless technology, 2.1 +EDR, Class 1.5
• Wi-Fi® 802.11b/g/n with extended range
• CDMA technology for use on the Verizon Network
• 3.75G modem - Pentaband Worldwide (Geo 3G model only)
• Frequencies: HSPA+/UMTS: 800/850/900/1800/1900/2100 MHz
