Radar GSSI 200 HS Digital Antenna

#107031

This digital, wireless antenna features a 200 MHz center frequency and employs GSSI’s proprietary HyperStacking® technology. This technology improves signal to noise performance and increases depth penetration under all soil conditions. The GS Series is ideal for geophysical, geotechnical, and environmental applications that require high reliability under challenging survey conditions.

Wheels may be removed for skid applications such as snow, etc.

The 200HS requires the use of an external survey wheel if encoded triggering is required. EXI includes a 12" survey wheel with the rental.

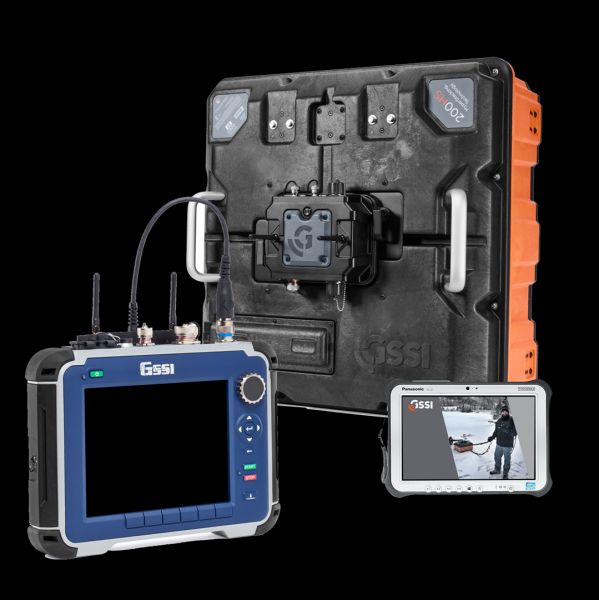

The shipped system includes the 200mHz digital antenna, wheels, WIFI module, tow strap and Panasonic G1 Tablet controller. Customers with a SIR4000 may opt to use that for their controller instead of the Tablet for a $30 per day reduction in rental cost.

200 HS ANTENNA
CENTER FREQUENCY 200 MHz
MAX DEPTH 21 m (70 ft)*
BATTERY LIFE 4 hours
ENVIRONMENTAL RATING IP65
VIBRATION Mil-STD-810G Method 514.6C Category 9
OPERATING TEMPERATURE -10°C to 40°C external (14°F to 104°F)
WEIGHT 17.9kg (39.6 lbs)
DIMENSIONS 64.8 x 64.8 x 34.3 cm (25.5 x 25.5 x 13.5 in)
MODEL 50200HS

DATA ACQUISITION
DATA FORMAT RADAN® (dzt)
OUTPUT DATA FORMAT 32-bit
SCAN INTERVAL Up to 200 scans/sec
NUMBER OF SAMPLES PER SCAN 512, 1024, 2048, 4096, 8192
OPERATING MODES Continuous (time), Survey Wheel (distance triggered), or Point Mode
TIME RANGE 0-16,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8
SIGNAL-TO-NOISE RATIO 171 dB
STANDARD REAL-TIME FILTERS Infinite Impulse Response (IIR) - Low and High Pass, vertical and horizontal
ADVANCED REAL-TIME FEATURES Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal, Dynamic Gain Control
INTERNAL GPS ACCURACY Autonomous 2.5 m (8.2 ft), SBAS 2.0 m (6.6 ft)
EXTERNAL GPS Bluetooth
WIRELESS RANGE 15 m (50 ft)
INPUT/OUTPUT USB, rugged Ethernet, survey wheel and marker input, digital connector
  * Under ideal soil conditions



Dimensions

29 x 29 x 17,30 x 26 x 15 inches

Weight

156 lbs

Rental per day

$180.00

Prep*

$150.00

Reserve

Downloads

GSSI-200HS-Brochure GSSI-200HS-Brochure

Ask a question about this item

*(Does not include shipping or insurance)
