CMD MiniExplorer 6L
The CMD Mini Explorer 6L is a welcome addition to our rental inventory. The 6L provides (6) simultaneous measurements of conductivity and in-phase data - all within 6 feet of the surface. This instrument is a must for those mapping shallow spills, agricultural investigations of soil salinity and archaeological work.

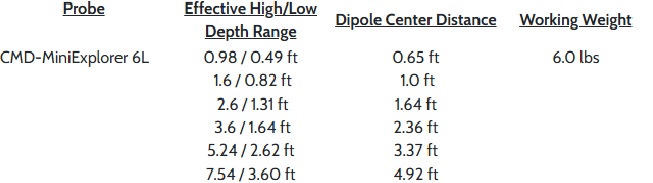

Measured quantities and ranges: Control Unit: Standard Control Unit Accessories: Standard Probe Accessories: 0.65 ft 1.0 ft1.64 ft2.36 ft3.37 ft4.92 ft
| Dimensions | 68 x 6 x 15 inches inches |
|---|---|
| Weight | 44 lbs lbs |
- Apparent conductivity: 1000 mS/m, resolution 0.1 mS/m.
- Inphase ratio: ± 80 ppt, resolution 10 ppm
- Measurement accuracy: ± 4% at 50 mS/m.
- Temperature stability: better than 0.1 mS/m /°C at slow temp. changes.
- Maximum sampling rate: 10 Hz.
- Full and half depth range (vertical and horizontal orientation of dipoles).
- Power supply: rechargeable Li-Ion battery lasts 2-3 working days (except. CMD-DUO transmitter).
- Operating temperature: -10°C to +50°C.
- Connection with probe is provided by cable or Bluetooth unit.
- Five modes of measurements:Manual measurement – the user starts measurement at each point by pressing the key or by probe button. The point position is updated automatically in the preset grid or can be entered directly. Each point can be re-measured or skipped and completed with a comment.
- Continuous measurement – data are measured and saved continuously in chosen measuring period. The positions on the profile are determined by length marks with consequent recalculation of positions of individual readings.
- GPS Manual measurement – the user starts measurement at each point by pressing the key or by probe button. The position is determined by GPS receiver.
- GPS Continuous measurement – data are measured and saved continuously in chosen measuring period. The position is determined by GPS receiver.
- Search mode – data are measured continuously but are not saved.
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
