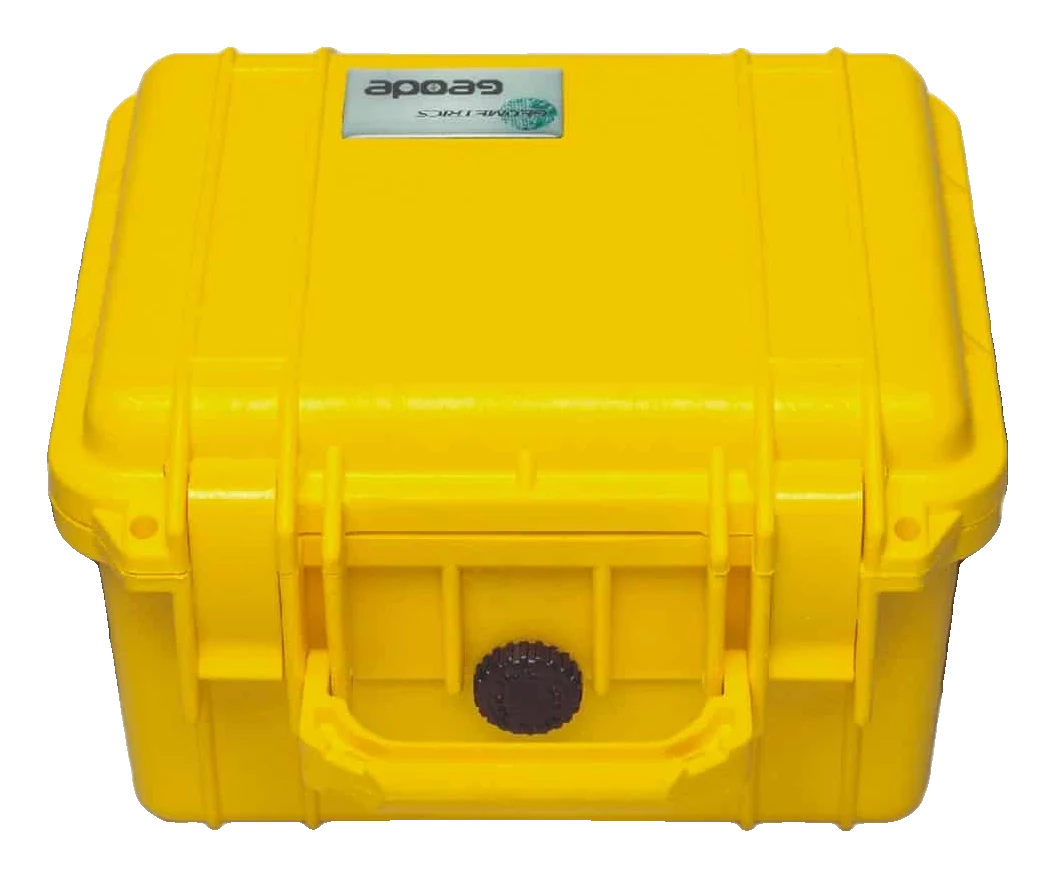

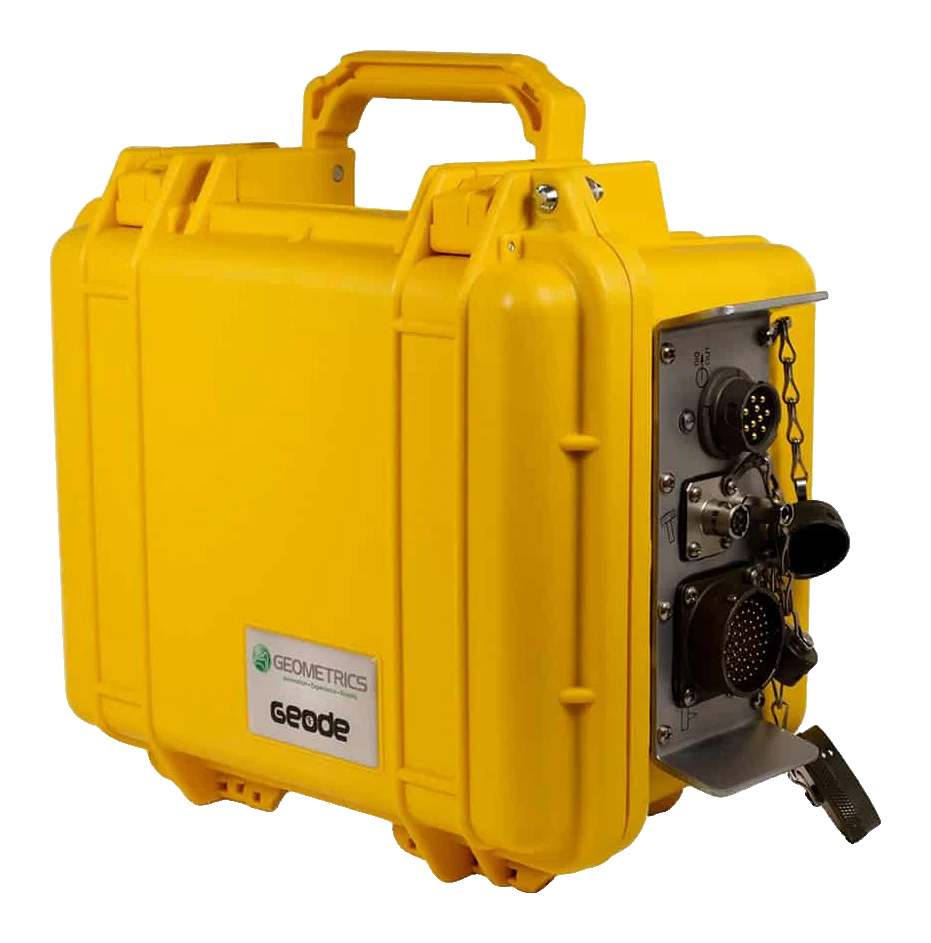

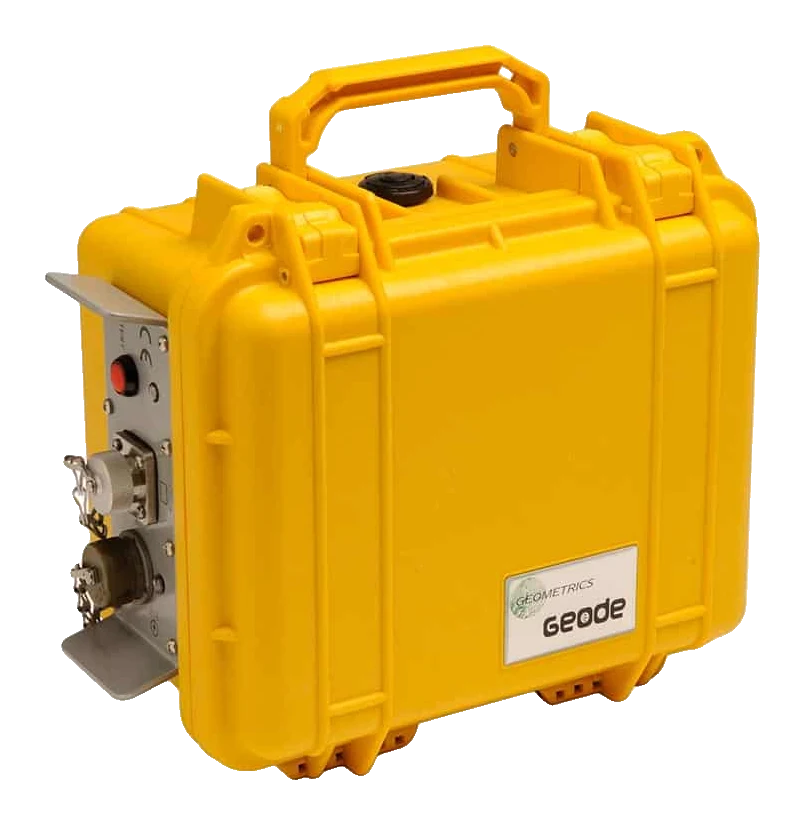

Geometrics Geode 24
The industry-standard 24-channel seismograph for refraction, reflection, and MASW.
Survey design, source energy, and geophone spacing set the depth
Illustration, not survey data. Actual depth depends on site conditions and survey design.
The Geode is the box most seismic crews have used at some point, and it earned that position by being difficult to break and simple to stack. Modules chain together when a job needs more channels, which is why it works equally well for a short refraction line and a long production survey.
| Channels | 24 — stackable in modules |
|---|---|
| Methods | Refraction, reflection, MASW |
| Build | Field-hardened, weather-sealed |
- Ultra Light-weight: 8 lb., 3.6 kg, modules are easy to carry and deploy.
- 3 Year Warranty: Supported by full time customer service staff with 4 technicians, 4 geophysicists, real-time on-line support available.
- Expandable: Available with 3 to 24 channels per module; connect more modules to build low cost distributed systems up to 1000 channels.
- Unmatched Specifications: 24 bit, ultra-high resolution 20 kHz bandwidth (8 to 0.02 ms sampling), low distortion (0.0005%), low noise (0.2uV), stacking accuracy (1/32 of sample interval).
- GPS Synchronization: Sub-sample timing accuracy so you know exactly when an event occurs.
- Built Rugged: Passes MIL810E vibration test, survives 1.5m drop onto concrete in 14 orientations, submersible.
- Easy Interface: Connects to any laptop or PC via standard network port. Plug the Geode into your building network and operate it remotely.
- Noiseless Digital Transmission: Data transmitted from Geodes digitally on light, inexpensive cables.
- Complete Performance and Line Testing: Built-in test finds bad geophones, cables. Interfaces with Geometrics field portable test oscillator when specifications verification is required.
- Versatile Seismic Recorder: Petroleum exploration and monitoring, engineering studies, depth to bedrock, fault and fracture location, hydrologic investigations, research and teaching.
- Reflection: Suitable for shallow reflection, deep reflection, 2-D and 3-D surveys
- Refraction: Comes with built-in first break picking and analysis
- Marine Surveys: Very fast time between shots, real-time single-trace gathers, gun monitoring, noise snapshots, tape swapping for 24/7 operation.
- Sub-bottom Profiling: Works with boomers, sparkers, bubble-pulse sources or air guns
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Build your rental
Pick your dates and we will confirm availability, final rates, and a proposal, usually the same business day.
Choose your dates
Rental days run door to door and include weekends. From 28 days the monthly rate applies automatically.
Shipping
Rentals travel on your own carrier account in both directions, so freight is billed to you directly and never marked up by us.
