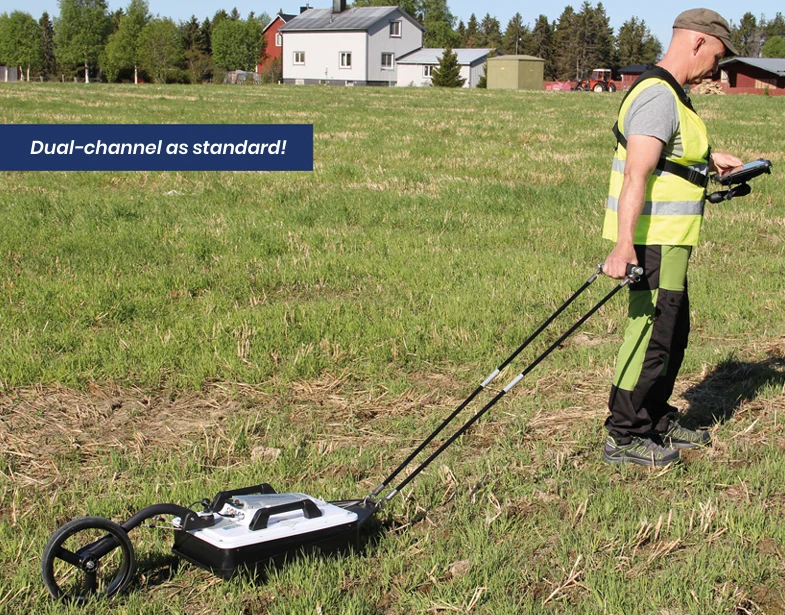

Impulse CrossOver 730
The deep-range CrossOver: 70 + 300 MHz dual-channel GPR reaching down to roughly 20 m, in tow configuration only.
Impulse CrossOver is a general-purpose series of GPR-systems, in two different deployment styles and with 2 separate frequencies in the range 70- to 300MHz. It is designed for the professional-geo community. It may be pulled or pushed in dedicated carts, by hand or by means of vehicles, at any speeds.
Each system comes as a true-dual frequency antenna with inbuilt control electronics and GPS-modules. The systems are controlled via Android-pads over a wireless link. It is based on real-time-technology which gives excellent depth penetration and bandwidth. Low power consumption gives 7 hours operational time, on one battery.
| Frequency | 70 MHz (LF) + 300 MHz (HF) dual channel |
|---|---|
| Depth range | Down to ~20 m, ground dependent |
| Weight | 20 kg / 45 lbs including battery |
| Battery life | 6 hours |
| GPS | Internal, DGPS / RTK compatible |
| Configurations | Tow only |
| Warranty & approvals | 2 years · CE, FCC & IC |
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Build your rental
Pick your dates and we will confirm availability, final rates, and a proposal, usually the same business day.
Choose your dates
Rental days run door to door and include weekends. From 28 days the monthly rate applies automatically.
Shipping
Rentals travel on your own carrier account in both directions, so freight is billed to you directly and never marked up by us.
