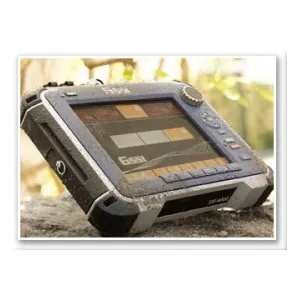

GSSI SIR-4000 Control Unit
The SIR® 4000 is GSSI’s first high-performance GPR data acquisition system designed to operate with analog and digital antennas. This evolutionary step allows true versatility and flexibility by supporting a wide range of users, beginner to advanced, in numerous applications. The SIR 4000 incorporates advanced display modes and filtering capabilities for ‘in-the-field’ processing and imaging.
Fully integrated, the system provides a simple user interface, plug-and-play GPS integration, and WiFi enabled data transfer capabilities. Ideal for multiple applications; utility designation, concrete inspection, mining and geology, environmental assessment, archaeology and forensics. Records data from 1 single-frequency antenna or 1 dual-frequency antenna
| Dimensions | 19 x 14 x 8 inches |
|---|---|
| Weight | 10 lbs (4.53 kg) including battery |
| System Antennas | Compatible with all GSSI antennas |
| Number of Channels | Records data from 1 single-frequency antenna or 1 dual-frequency antenna |
| Data Storage | 32 GB |
| Display | Enhanced 10.4" LED display with internal high brightness, Active matrix 1024 x 768 resolution and 32-bit color |
| Gps | Data logged internally |
| Display Modes | Linescan, Linescan plus O-scope, Wiggle traceFull 3D, 256 color bins are used to represent the amplitude and polarity of the signal |
| Data Acquisition Data Format | RADAN (dzt) |
| Output Data Format | 32-bit |
| Scan Interval | User-selectable, up to 4000 scans/sec |
| Number of Samples per Scan | 256, 512, 1024, 2048, 4096, 8192, 16384 |
| Operating Modes | Continuous (time) or survey wheel (distance triggered)or point mode |
| Time Range | 0-20,000 nanoseconds full scale, user-selectableGain: manual adjustment from -42 to +126 dBNumber of segments in gain curve is user-selectable from 1 to 8 |
| Standard Real-Time Filters | Infinite Impulse Response (IIR) - Low and High Pass, vertical and horizontalFinite Impulse Response (FIR) - Low and High Pass, vertical and horizontal |
| Advanced Real-Time Filters | Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal |
| Automatic System Setups | Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations |
| Automatic Antenna Recognition | Automatic recognition of Smart Antennas to allow maximum compliant transmit rate |
| Languages | English, Chinese, Japanese, French |
| Operating Operating Temperature | -20°C to 40°C external (14°F to 104°F) |
| Battery | Inspired Energy Ni2020ED, 3 hour runtime (battery life dependent on level of display brightness) |
| Transmit Rate | Up to 800 KHz (International)US/Canada and CE rates depend on antenna model |
| Input/Output Available Ports | Antenna inputs analog and digital (one at a time), DC power input, Serial RS232 (GPS port), Accessory connector, HDMI video output, Ethernet to PC, USB 2.0 port, mini USB |
| WiFi | 802.11B/G |
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
