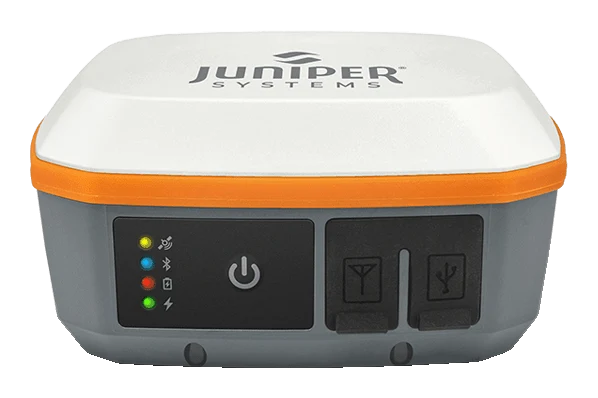

Juniper Sys Geode
RECEIVER ACCURACY *GNSS accuracy subject to observation conditions, multipath environment, number of satellites in view, satellite geometry, and ionospheric activity. COMMUNICATIONS RECEIVER PROTOCOLS POWER ANTENNA JUNIPER RUGGED™ SOFTWARE INCLUDED ACCESSORIES
| Weight | 2 lbs |
|---|
- Receiver type: GNSS single frequency with carrier tracking
- Signals received: GPS, SBAS,GLONASS (optional)
- Channels: 372
- SBAS tracking: 3-channel parallel tracking
- Update rate: 1 Hz standard, 2–10 Hz (optional)
- SBAS (WAAS): <30 cm horizontal RMS (<60 cm 2DRMS)*
- Cold start: <60 sec typical(no almanac)
- Reacquisition: <1 sec
- Bluetooth® 4.0 (Serial Port Profile)
- Bluetooth range: Class 1 Long Range
- Ports: micro USB Client 2.0; serial RS232C DB-9 (optional)
- Serial baud rates: 4800–115200
- Data I/O protocol: NMEA 0183, raw binary (proprietary), RTCM2
- Other: 1PPS timing output, Speed Pulse, event marker input (optional)
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Build your rental
Pick your dates and we will confirm availability, final rates, and a proposal, usually the same business day.
Choose your dates
Rental days run door to door and include weekends. From 28 days the monthly rate applies automatically.
Shipping
Rentals travel on your own carrier account in both directions, so freight is billed to you directly and never marked up by us.
