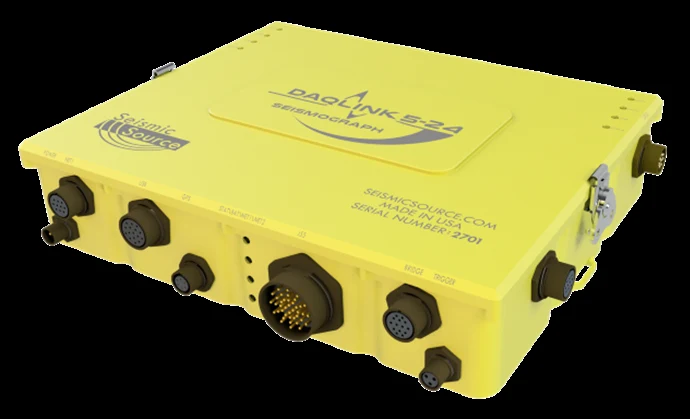

DAQlink 5-24
The DAQlink 5-24 is a high-resolution, 24-channel portable seismograph designed for active-source acquisition, passive monitoring, refraction surveys, and distributed seismic recording. It combines high-speed 24-bit ADC performance, compact size, low power operation, and flexible Ethernet networking. It is configured with a 54-pin connector for use with compatible seismic cables.
For compatibility with 61 pin cables, please see the GeoDAQ listing. DAQlink 5 is the fifth generation of portable seismograph systems. It can be configured as a stand-alone monitoring system, a refraction system, or as part of a distributed seismic reflection system.
Vscope software provides acquisition control, data QC, and file storage. Multiple DAQlink 5-24 units can be stacked or networked together for larger high-channel-count systems, making the system useful for small crews, downhole acquisition, marine seismic, and large distributed seismic projects.
- 1 to 24 channels per seismograph
- High-speed 24-bit ADC up to 64,000 samples per second
- Wide bandwidth from DC to 27 kHz
- Low distortion: better than 0.00008% THD at 500 sps
- Wide dynamic range greater than 124 dB at 500 sps typical
- Low noise: less than 0.15 µV RMS at 500 sps typical
- GPS clock discipline for continuous recording
- PTP support to synchronize multiple units
- VHF/UHF radio timing for underground use
- Trigger accuracy of ±1 microsecond at any sampling frequency
- Trigger on hammer switch for shot acquisition
- Trigger using GPS time for noise monitoring
- Trigger using LTA/STA for event monitoring
- Two trigger circuits available, one standard and one for low-voltage inputs
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Datasheets, quick-start guides, and field videos for the DAQlink 5-24 are available on request while we build out the library. Ask for the documentation pack.
