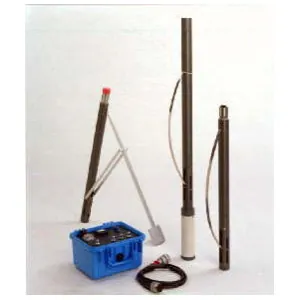

Geostuff BHG-2 Triax geophones
The Geostuff model BHG-2 contains 3 geophones oriented in an X-Y-Z pattern. The longitudinal geophone points toward the clamp spring. The outside diameter is 1.85 inches (47 mm), small enough to fit inside a schedule-40, 2-inch plastic pipe, but NOT A SCHEDULE 80, 2-INCH PIPE.
The clamping mechanism is a robust, steel spring compressed by a DC electric motor. Downhole cables are available in 100', 150' and 300' lengths and plug to the control box. Two control boxes may be piggy-backed so that two borehole geophones can be read from a 12-channel seismograph.
A cable from the control box terminates in a standard Bendix 61 connector. If you require connection to an older 12-channel NK-27 type connector, please let us know and we will include the proper cable for you.
| Dimensions | 25 x 20 X12 inches |
|---|---|
| Weight | 45 lbs |
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Build your rental
Pick your dates and we will confirm availability, final rates, and a proposal, usually the same business day.
Choose your dates
Rental days run door to door and include weekends. From 28 days the monthly rate applies automatically.
Shipping
Rentals travel on your own carrier account in both directions, so freight is billed to you directly and never marked up by us.
