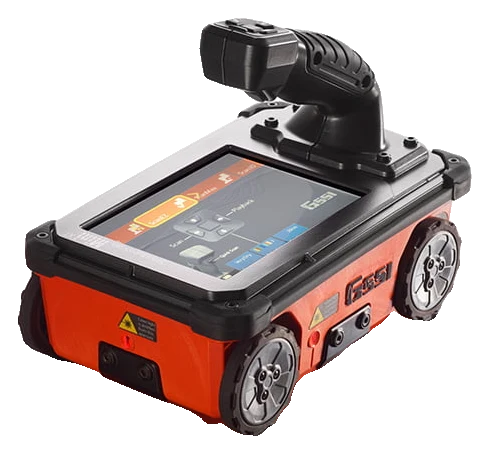

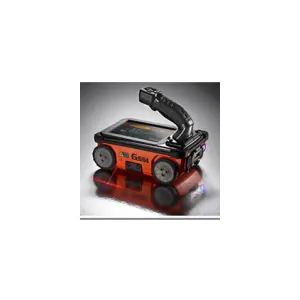

StructureScan Mini XT
The StructureScan Mini XT is GSSI’s newest generation of the very popular all-in-one GPR systems. The StructureScan Mini XT offers a 2.7 GHz antenna for superior target resolution and can reach depths of 20 inches (50 cm). Ideal for locating rebar, conduits, post-tension cables, voids, and real time determination of concrete slab thickness. Typical Uses for StructureScan Mini Include:
RADAN for StructureScan Mini is a post-processing software package for the StructureScan Mini Series. It is designed to process, view, and document 2D and 3D data collected with the StructureScan Mini and StructureScan Mini HR. The software features bold and intuitive menu screens and clear data views for easy interpretation and enhanced post-processing capabilities.
Data illustrates a volumetric view of a rebar mat with user-defined virtual borehole location.
Data illustrates a rebar mat in a test slab. Targets are identified and marked using software Target Picking tool.
| Dimensions | 24 x 19 x 9 inches |
|---|---|
| Weight | 25 lbs |
- Concrete inspection – locate metallic and non-metallic targets in walls, floors and ceilings
- Structure inspection – bridges, monuments, walls, towers, tunnels, balconies, garages, decks
- Condition assessment – map relative concrete condition for rehab planning
- Measure slab thickness
- Void location
- The StructureScan Mini XT employs a new 2.7 GHz antenna positioned 8 mm off the surface, providing additional ground clearance which allows the antenna to be used over rough concrete surfaces. This antenna provides excellent near surface resolution while also maintaining the ability to resolve deeper targets.
- Get first-in-class data visualization with a state-of-the-art 6.5 inch HD touchscreen user interface and different operation modes designed for beginner to advanced use.
- Use QuickScan to collect data with the push of one button, or select any of the app-based data collection options including ScanMax and Scan3D for advanced data interpretation.
- The StructureScan Mini XT makes it easy to customize the data display with a variety of color adjustments. Real-time migrated data, onscreen reference markers, real-time signal floor indicator are also available.
- Incorporated into the design are three accessory ports that allow for future expansion. The extension pole accessory offers added length and six-button remote operation, ideal for walking and wall surveys.
- All-in-one control unit, 2700 MHz antenna and survey wheel combo
- Dual battery charger
- Two batteries
- Rugged carrying case
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Build your rental
Pick your dates and we will confirm availability, final rates, and a proposal, usually the same business day.
Choose your dates
Rental days run door to door and include weekends. From 28 days the monthly rate applies automatically.
Shipping
Rentals travel on your own carrier account in both directions, so freight is billed to you directly and never marked up by us.
