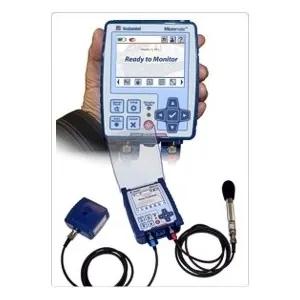

MicroMate Vibration Monitor
Introducing the new Instantel® Micromate® Vibration and Overpressure Monitor. Range of Applications Micromate Highlights Key Features Hand-held USB interface for high-speed data transfers and connection to Instantel compatible modem, printer and memory sticks Touch screen with context sensitive icons Auto Call Home™ remote monitoring function 10 day battery life (15 day optional) Rugged design (optional protective boot and cover) 4 Channels Microphone and Triaxial Geophone Memory Store 1000 Events Record Modes Waveform, Waveform Manual Histogram and Instantel® Histogram Combo Available Sample Rates 1,024, 2,048, 4,096 KHz S/s per channel (independent of record time) Unit Dimensions 101.6 x 135.1 x 44.5 mm (4.15 x 5.32 x 1.75 in) Unit Weight 0.5 kg (1.1 lbs) User Interface 10 domed tactile keys, colour touch screen, and full display keyboard with dedicated icons for common functions Product Rank Mid-range
| Weight | 7 lbs |
|---|
- USB Connectivity for downloading events and to connect to external devices such as powered USB Hubs, Modems, Memory sticks, Printers or a GPS.
- Download Events without a PC: Simply connect a USB memory stick, select and save Events
- Touch Screen: Large, high resolution color graphics touch screen
- Easy to read and navigate menu structure
- Context Sensitive Icons: Icons are only shown if they are relevant to what you are doing
- Short Cut Icons: Fast, one touch access to the most commonly used features
- Context Sensitive Help at your fingertips
- Integrated Keypad: Large 10-key interface with dedicated function keys
- Remote Access: Use Instantel\u2019s Auto Call Home program for easy, remote access to your monitor and data
- Field Printing: Optional field printing with a supported Instantel USB printer
- Variable Sample Rates: 1024, 2048, and 4096 samples per second (S/s) for each channel
- Zero dead time between recorded events
- Full Waveform Event capacity with the standard memory, store up to 1000 events of one second duration at sample rates up to 2048 S/s.
- Battery Life: 10 days of monitoring (15 day option available)
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Build your rental
Pick your dates and we will confirm availability, final rates, and a proposal, usually the same business day.
Choose your dates
Rental days run door to door and include weekends. From 28 days the monthly rate applies automatically.
Shipping
Rentals travel on your own carrier account in both directions, so freight is billed to you directly and never marked up by us.
