GeoTomographie DevProbe

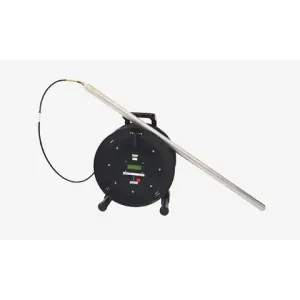

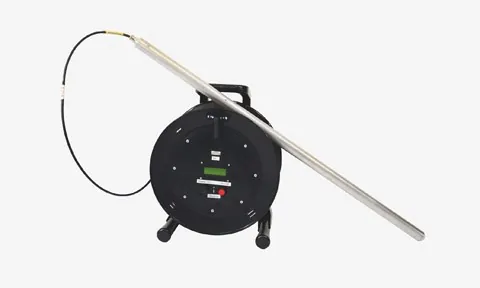

The Deviation Probe DevProbe1 is used to measure the borehole deviation. A three-axis magnetometer measures the azimuthal direction of the borehole and a dual tilt sensor provides information about the inclination. The probe is sealed and temperature compensated.
Borehole deviation is required to determine the precise XYZ location of a seismic source or geophone inside a borehole. A software is provided to visualize and store the deviation data. Operational depth: Up to 200 m Probe length: 1235 mm Probe diameter: 40 mm Probe weight: 3.45 kg Cable weight per metre: 62 g Cable strength: 1700 N Borehole diameter: 50 mm Azimuth range: 0 - 360° Azimuth resolution: +/-1° @ tilt > 10° Tilt range: 0 - 180° Tilt resolution: +/-0.1° Temperature range: 0 to 135°C Depth indicator: Cable marker every 1 m Storage: On drum
| Operational depth | Up to 200 m |
|---|---|
| Probe length | 1235 mm |
| Probe diameter | 40 mm |
| Probe weight | 3.45 kg |
| Cable weight per metre | 62 g |
| Cable strength | 1700 N |
| Borehole diameter | 50 mm |
| Azimuth range | 0 - 360° |
| Azimuth resolution | +/-1° @ tilt > 10° |
| Tilt range | 0 - 180° |
| Tilt resolution | +/-0.1° |
| Temperature range | 0 to 135°C |
| Depth indicator | Cable marker every 1 m |
| Storage | On drum |
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Datasheets, quick-start guides, and field videos for the GeoTomographie DevProbe are available on request while we build out the library. Ask for the documentation pack.
