GeoTomographie BGK7

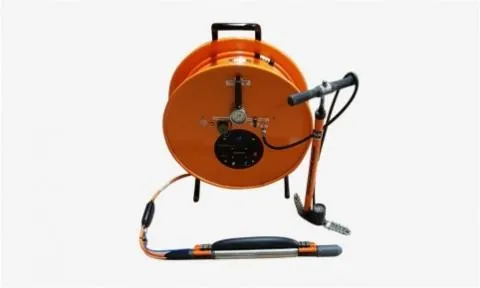

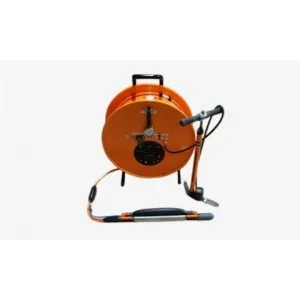

The borehole geophone BGK3 is used to receive P- and S-waves in dry or water filled boreholes. The borehole geophone BGK3 consists of a tri-axial sensor whereas the BGK7 consists of six horizontal sensors, separated by 30° intervals, and one vertical sensor. The geophone is coupled to the borehole wall by a pneumatic clamping system (inflatable bladder).
Air is supplied to the BGK3/7 through an electro-pneumatic hybrid cable with a Kevlar tension string. A magnetic compass shows azimuthal deviation to North and can be used to get the orientation of the geophone in the borehole. The cable is terminated by a connector to the seismograph.
3 inch borehole diameter needed for bladder. Natural sensor frequency: 10 Hz (others on request) Sensor arrangement: Tri-axial (BGK3) or 6 horizontal (30°)/1 vertical (BGK7) Operational depth: Up to 100 m Receiver length: 705 mm Receiver diameter: 50 mm Receiver weight: 3 kg Cable weight per metre: 145 g Cable strength: 2150 N Borehole diameter: 75 mm or 3 inches Clamping system: Inflatable bladder Orientation: Magnetic compass (+/-2.5°) Depth indicator: Cable marking every 2 m Connector: To any seismograph Storage: On drum
| Natural sensor frequency | 10 Hz (others on request) |
|---|---|
| Sensor arrangement | Tri-axial (BGK3) or 6 horizontal (30°)/1 vertical (BGK7) |
| Operational depth | Up to 100 m |
| Receiver length | 705 mm |
| Receiver diameter | 50 mm |
| Receiver weight | 3 kg |
| Cable weight per metre | 145 g |
| Cable strength | 2150 N |
| Borehole diameter | 75 mm or 3 inches |
| Clamping system | Inflatable bladder |
| Orientation | Magnetic compass (+/-2.5°) |
| Depth indicator | Cable marking every 2 m |
| Connector | To any seismograph |
| Storage | On drum |
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Datasheets, quick-start guides, and field videos for the GeoTomographie BGK7 are available on request while we build out the library. Ask for the documentation pack.
