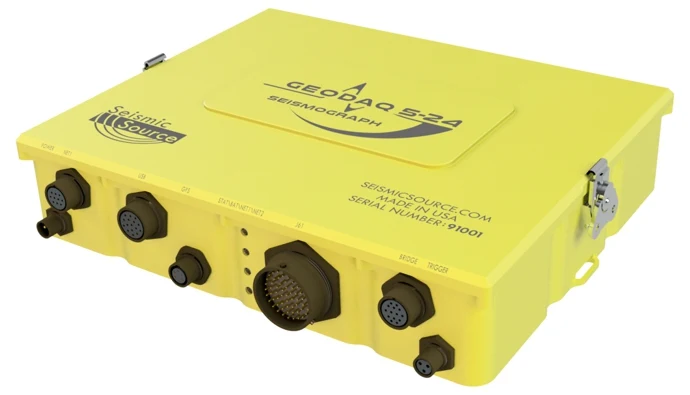

GeoDAQ 5-24
The GeoDAQ 5-24 is a high-resolution, 24-channel portable seismograph designed for stand-alone monitoring, refraction surveys, and distributed seismic reflection systems. It combines high-speed 24-bit ADC performance, compact size, low power operation, and rugged field construction. GeoDAQ 5-24 is compatible with 61-pin spread cables and geophones, making it well suited for near-surface, engineering, refraction, and small-crew seismic applications.
For compatibility with 54 pin cables, please see the DAQlink listing. Vscope software provides acquisition control, data QC, and file storage through industry-standard Ethernet. The GeoDAQ 5-24 can operate as a small stand-alone seismograph or as part of a larger multi-unit acquisition system.
It supports active-source recording, passive monitoring, automated event detection, downhole sensors, and larger source systems such as vibroseis, dynamite, and mechanical impulse sources.
- 1 to 24 channels per seismograph node
- High-speed 24-bit ADC up to 64,000 samples per second
- Wide bandwidth from DC to 27 kHz
- Low distortion: better than 0.00008% THD at 500 sps
- Wide dynamic range greater than 124 dB at 500 sps
- Low noise: less than 0.15 µV RMS at 500 sps
- GPS clock discipline for continuous recording
- GPS time and position saved with data
- VHF/UHF radio timing support for underground use
- Trigger accuracy of ±1 microsecond at any sampling frequency
- Trigger on hammer switch for shot acquisition
- Trigger using GPS time for noise monitoring
- Trigger using LTA/STA for event monitoring
- Two trigger circuits available: standard and low-voltage input
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Datasheets, quick-start guides, and field videos for the GeoDAQ 5-24 are available on request while we build out the library. Ask for the documentation pack.
