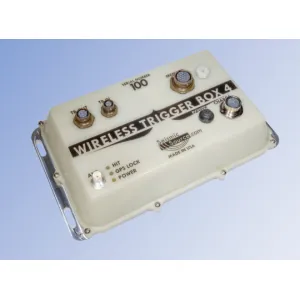

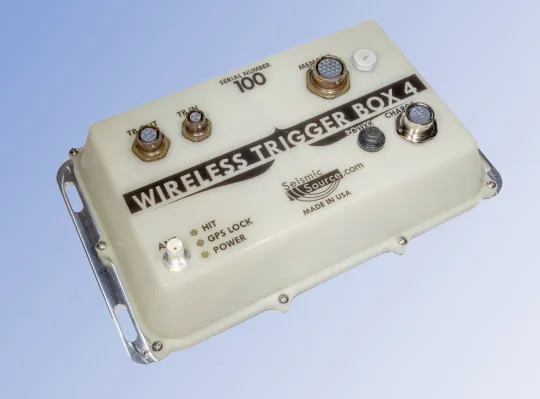

Radio Trigger Link

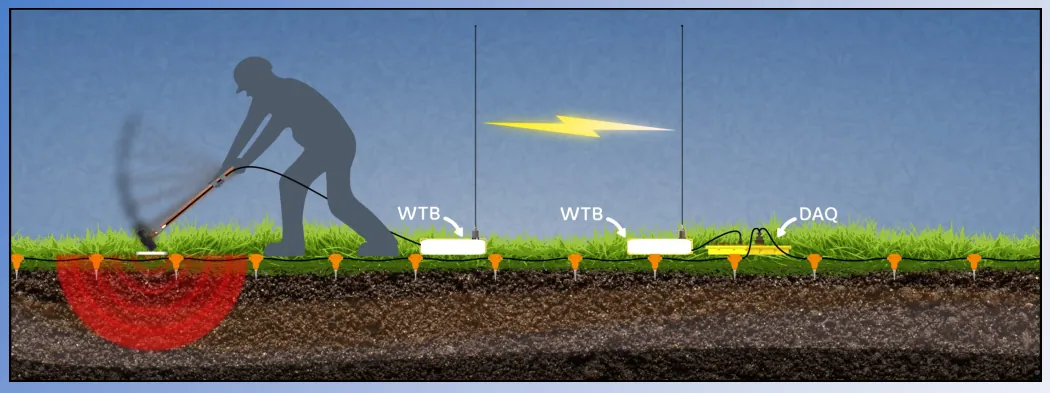

The Wireless Trigger Box 4 (WTB4) system is designed to operate with any seismograph and any mechanical impact source. There are two parts to the WTB4 system:
• One WTB4, the “Source” WTB4, senses the trigger pulse from the hammer switch, calculates its true GPS T0 time and transmits it to the “Recorder”.
• The second WTB4, the “Recorder” WTB4, receives the GPS time of the trigger signal from the “Source” unit and starts the seismograph.
The Source WTB4 sender unit is designed to operate with multiple Recorder WTB4 units.
| Weight | 4.5 lbs |
|---|
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Datasheets, quick-start guides, and field videos for the Radio Trigger Link are available on request while we build out the library. Ask for the documentation pack.
Build your rental
Pick your dates and we will confirm availability, final rates, and a proposal, usually the same business day.
Choose your dates
Rental days run door to door and include weekends. From 28 days the monthly rate applies automatically.
Shipping
Rentals travel on your own carrier account in both directions, so freight is billed to you directly and never marked up by us.
