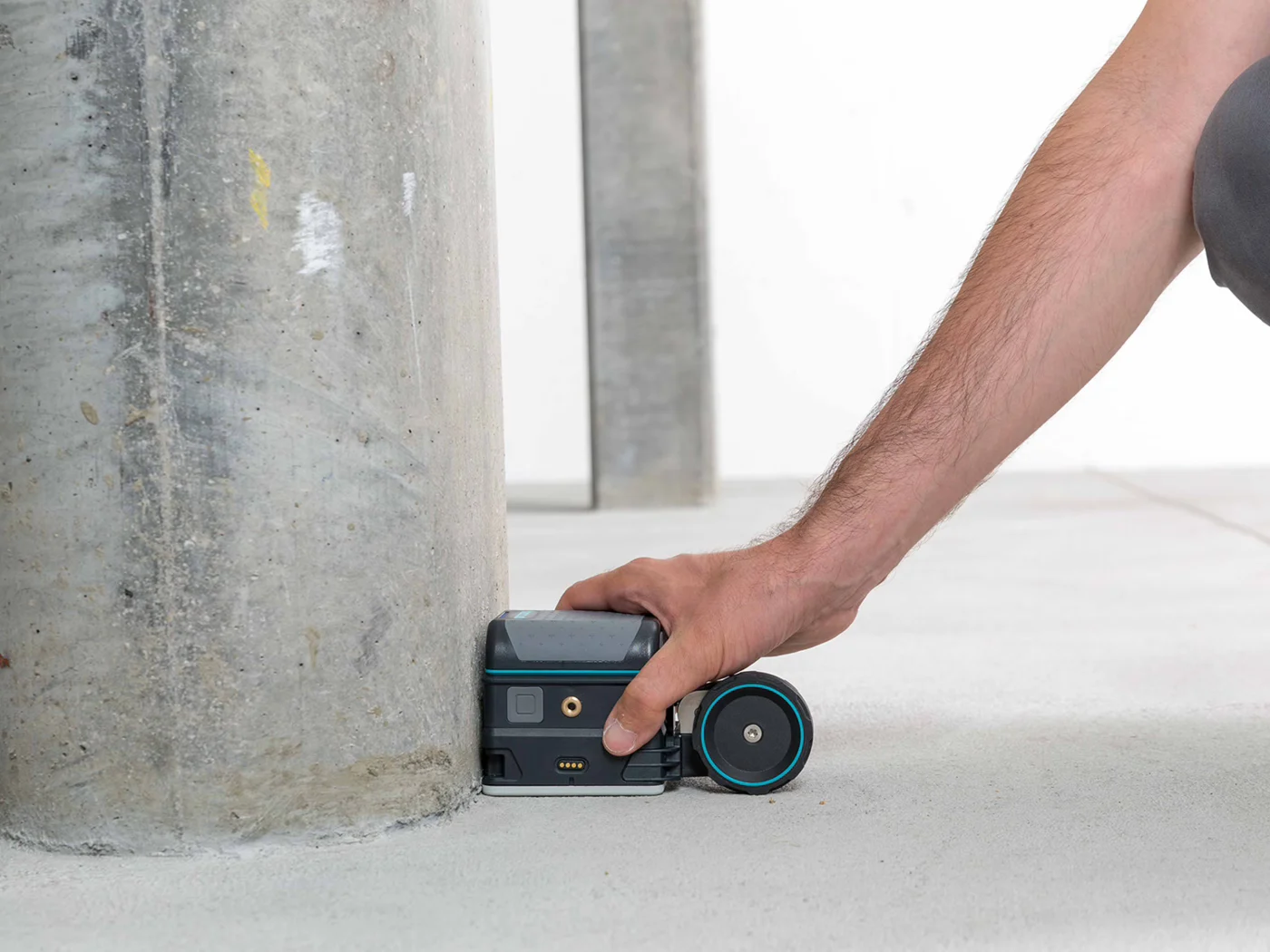

Screening Eagle GP8800
Concrete inspections and structural imaging with SFCW ground penetrating radar technology now fits at the palm of your hand.
Applications: congested rebar configurations, areas close to walls and underneath pipes, irregular and curved surfaces, and concrete quality assessment.
| Radar technology | Stepped-frequency continuous-wave (SFCW) GPR |
|---|---|
| Modulated frequency range | 400 – 6000 MHz |
| Penetration depth | 65 cm / 25.6 in |
| Measurement modes | Superline Scan (1000 m / 3281 ft), Area Scan with flexible grid up to 100 m² / 1076 ft² |

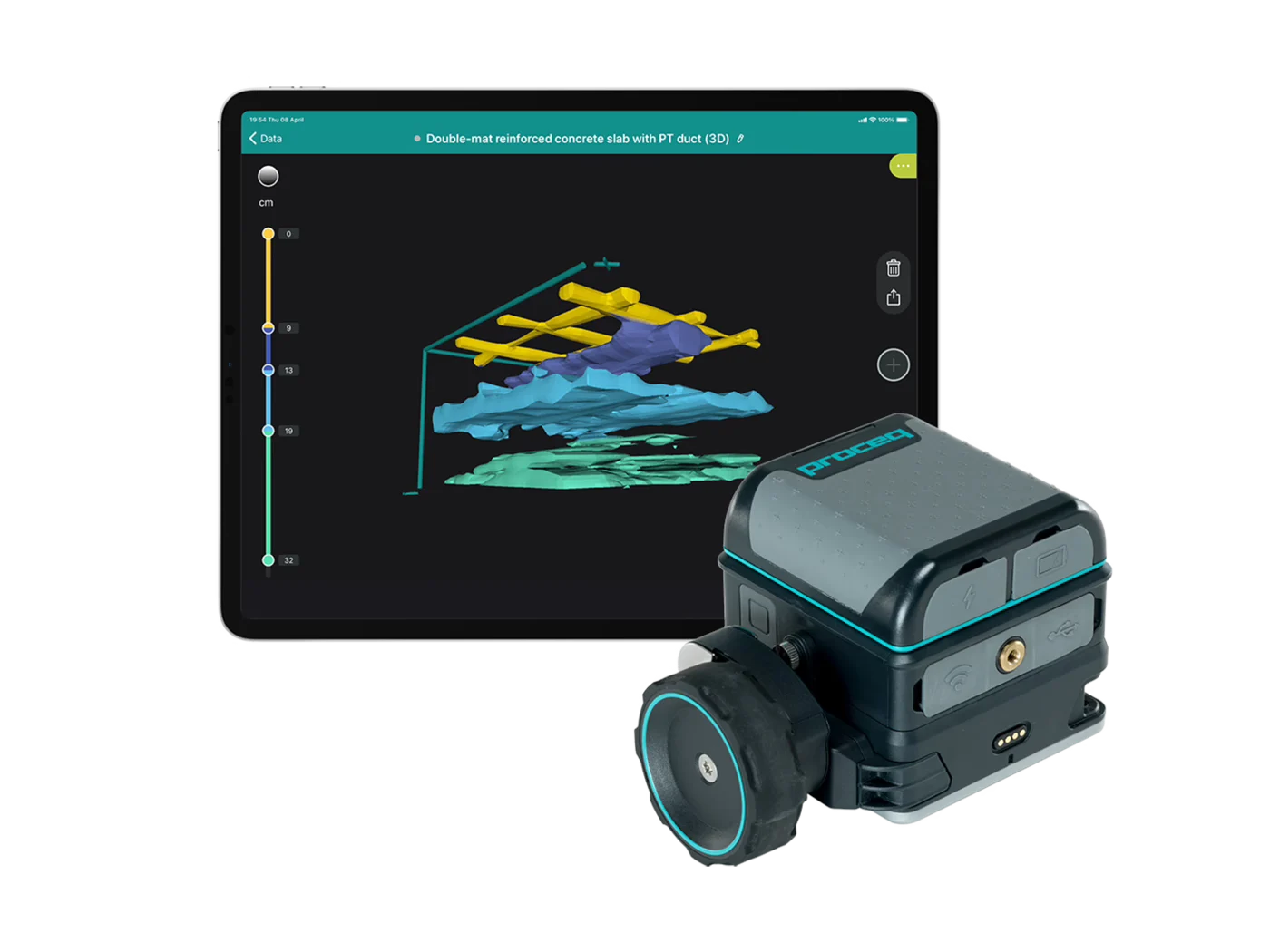

| Review modes | Superline scan, A-scan with envelope, migrated and non-migrated views, split view, time-slice view, 3D view, augmented reality |
| Software | Proceq GPR App |
| Battery | Flight-safe, removable pack, 4x AA (NiMH) |
| Dimensions | 3.5 x 3.5 x 3 in (8.9 x 8.9 x 7.6 cm) |
| Weight | 17.2 oz / 487 g (excl. battery pack) |
- Superior insights thanks to unparalleled depth and clarity of data from the powerful probe
- Easy to learn and to operate with our user-friendly, feature-rich, intelligent software
- Unmatched productivity through user-centric inspection ergonomics and digital workflow
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Build your rental
Pick your dates and we will confirm availability, final rates, and a proposal, usually the same business day.
Choose your dates
Rental days run door to door and include weekends. From 28 days the monthly rate applies automatically.
Shipping
Rentals travel on your own carrier account in both directions, so freight is billed to you directly and never marked up by us.
