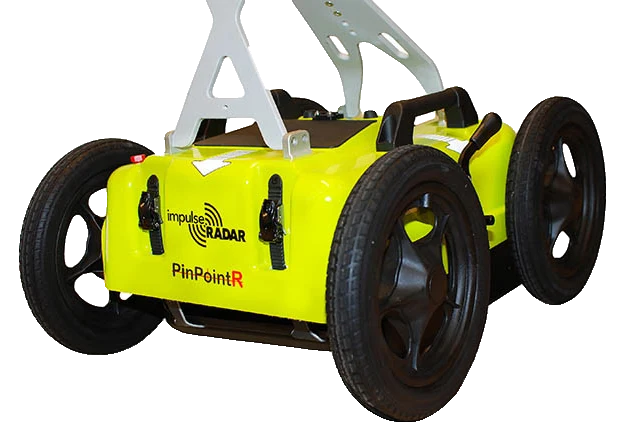

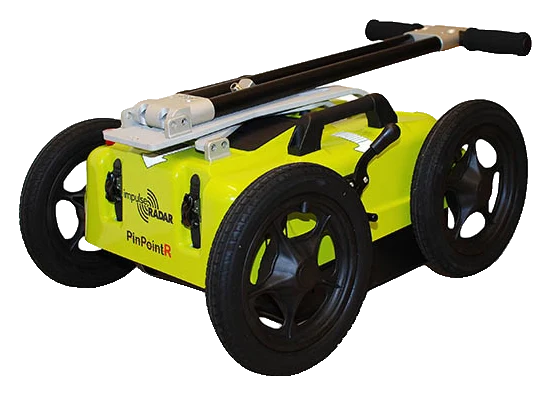

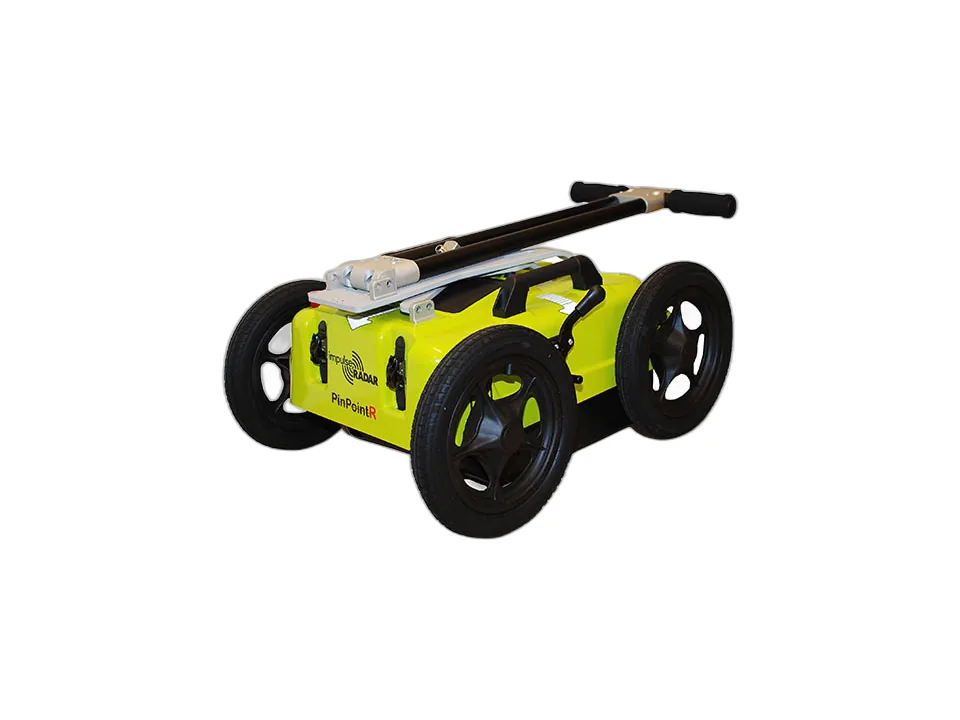

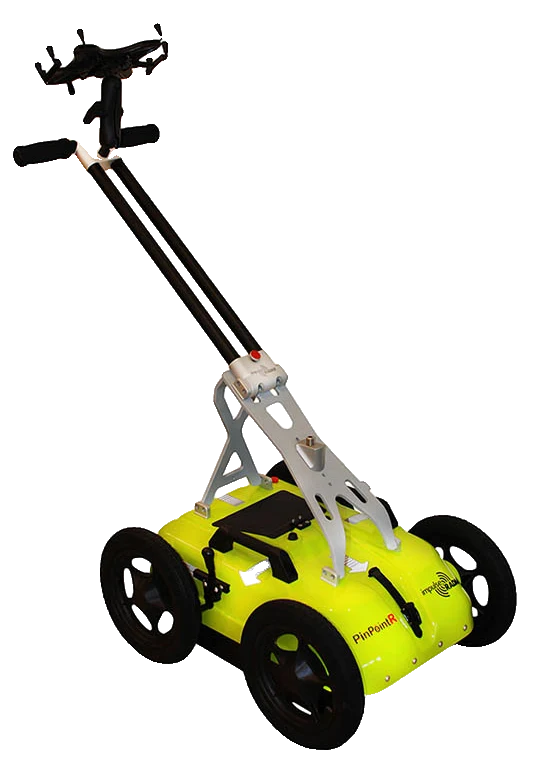

Impulse PinPointR
Dual-frequency utility GPR with built-in GPS and an Android-driven interface. No control unit, no cables to lose. It arrives field-ready the moment the case opens.
Typical utility soils; conductive clay reduces penetration
Illustration, not survey data. Actual depth depends on site conditions and survey design.
The PinPointR was developed to maximise in-field productivity: two frequencies live in a single antenna, so shallow service laterals and deeper mains are captured in one pass instead of two. Positioning, data collection, and marking all run from the tablet, which means a locator can walk a site alone and leave with a finished deliverable.
| Depth range | 0 to 10 m — site dependent |
|---|---|
| Frequency | Dual 400 + 800 MHz |
| Positioning | Built-in GNSS |
| Ship weight | 42 lbs — 51 lbs with field bundle |
- PinPointR antenna cart with integrated GNSS
- Field tablet, pre-loaded and licensed
- Battery pack, charger, and spare cable set
- Transit case with foam insert
Build your rental
Pick your dates and we will confirm availability, final rates, and a proposal, usually the same business day.
Choose your dates
Rental days run door to door and include weekends. From 28 days the monthly rate applies automatically.
Add the field bundle
Optional. Most Impulse PinPointR rentals go out with it.
Shipping
Rentals travel on your own carrier account in both directions, so freight is billed to you directly and never marked up by us.
