GeoTomographie IPG800 Impulse Generator

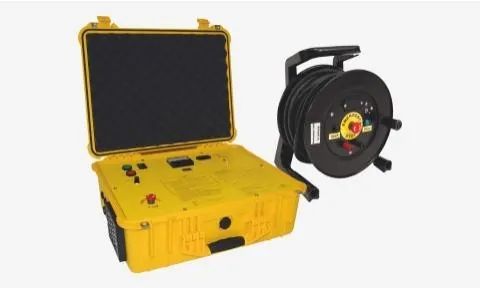

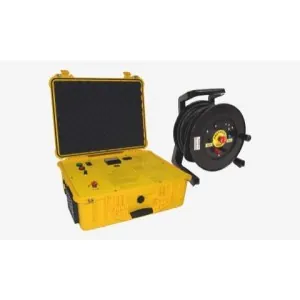

The Impulse Generator IPG800 is the high voltage supply to the seismic borehole source BIS-SH-DS. The energy is stored in capacitors which discharge through a mechanical switch. The lightweight IPG800 is incorporated in a robust PeliTM case.
The IPG800 is operated by a Remote Control Unit (RCU) which is used to start a pre-defined sequence of shots or to stop the operation. The RCU is connected to the seismograph to send an accurate trigger signal. Impulse voltage: 800 V Impulse energy: 1000 J Power supply: 2 x 12 V (car batteries) Shot release: Single or continuous (5/10 shots) Repetition rate: 10 s Dimensions: 53 x 43 x 23 cm Weight: 15 kg Special features: Impulse counter Test trigger Emergency OFF button RCU: Start/stop operation Trigger output Emergency OFF button
| Impulse voltage | 800 V |
|---|---|
| Impulse energy | 1000 J |
| Power supply | 2 x 12 V (car batteries) |
| Shot release | Single or continuous (5/10 shots) |
| Repetition rate | 10 s |
| Dimensions | 53 x 43 x 23 cm |
| Weight | 15 kg |
| Special features | Impulse counter |
| Rcu | Start/stop operation |
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
Datasheets, quick-start guides, and field videos for the GeoTomographie IPG800 Impulse Generator are available on request while we build out the library. Ask for the documentation pack.
