CMD Multi-depth Explorer

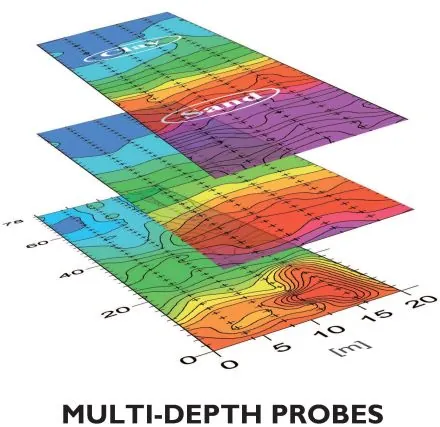

The CMD represents a large family of contactless geophysical instruments for fast assessment of ground conductivity and inphase (susceptibility). Single or multi depth probes designed for 0.5 - 6.7 m depth range allow single or multi layer mapping in traditional or GPS modes including vehicle applications. Applications: Geological and civil engineering survey, agriculture and forestry, environmental monitoring, groundwater protection, raw material prospecting, archaeology, metal objects and utilities network detection.
Standard control unit accessories: Standard Probe Accessories: Additional Technical Information Control Unit: Probes:
| Dimensions | 14 X 9 X 52 inches |
|---|---|
| Weight | 57 lbs |
| Probe | Effective High/Low Depth Range. |
| CMD-Explorer | 2.2 / 1.1 m |
| Ship weight | 57 lbs |
- two manual and two continuous measuring modes with GPS or length mark positioning
- minimum need of settings and calibration checking
- high resistance against electromagnetic noise
- lightweight and low power consumption
- good visibility of the graphic display under all conditions
- large memory capacity
- easy data transfer to PC using USB cable connection or USB memory stick
- compatibility with inversion and mapping SW (IX1D, Res2DInv/Res3DInv, Surfer)
- AC/DC adapter for 100-240 V AC, 50-60 Hz
- Cable for 12 V car socket supply
- Internal battery holder for 6 AA cells
- Carrying belt
- Cable for data download to PC and Flash Disk
- CD with software
Every rental ships with the cables, batteries, chargers, and documentation needed to survey on arrival, packed in a transit case. Tell us about your job and we will confirm the exact configuration for your dates.
