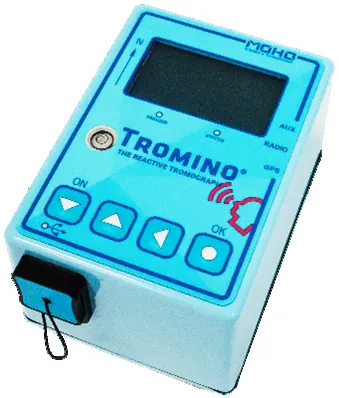

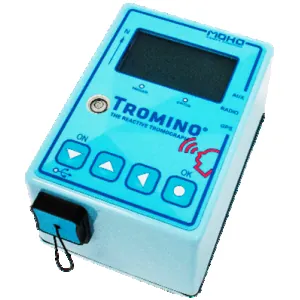

Tromino ZERO
The Tromino BLU ZERO is a small, lightweight, 3-channel, all-in-one seismograph specifically designed for the dynamic characterization of subsoils with the highest accuracy and the lowest effort. This very adaptable device has applications for both geology and engineering (modal analysis for structures). Typical geologic uses might be:
Want to know more about the many different ways to employ this device?
Routine for subsoil data analysis (resonance frequencies): spectral analysis, directional analysis, reference site (SSR) and H/V analysis following the European guidelines (SESAME 2005, etc.). Automatic and manual trace cleaning in the frequency and time domain Routine for structure data analysis (modal analysis): spectral analysis, directional analysis, reference site analysis (SSR, Hi/H0) Automatic report in WordTM .doc format Output data can be used in contouring software to produce synthetic sections
Module for Vs30 parameter estimation through constrained H/V fit
| Dimensions | 16x12x12 inches |
|---|---|
| Weight | 18 lbs |
- Mapping subsoil resonance frequencies (H/V technique)
- Modeling H/V curves to obtain shear wave velocity profiles (Vs) in the presence of independent constraints.
- Creating passive seismic imaging of the subsoil.
- Applications Note
- Passive Seismic Surveying - A new and cost-effective site-assessment tool forthe quarrying industry By Dave J.R. Morgan1, Michael G. Raines1, Stephen Thorpe1, Silvia Castellaro2, Eddie Bailey3 and Philip R. Wilby1 published in Quarry Management 2017
- 3 velocimetric channels for seismic ambient microtremor and strong vibrations, 2 amplification levels (saturation: +/- 1.2 mm/s in band)
- Sampling rates 128, 256, 512, 1024 Hz on all channels
- USB cable for data transfer to PC
- 10 x 7 x 13 cm, ~ 1 kg
- 16 Gb storage capacity
- Internal rechargeable battery
- 2 set of spikes for sensor-soil coupling
- standard frequency band 0.1-500 Hz
