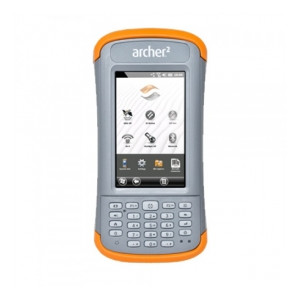

Electromagnetic Juniper Systems Archer2 Field PC

#101461
  • Size: 3.6" w x 7.25" l x 1.5" d (91 mm x 184 mm x 38 mm)
  • Weight: 1.3 lbs (590 g)
  • Durable hardened plastic in a shear-proof and shock-resistant design
  • Strong chemical resistance
  • Comfortable, wide hand strap
  • Easy-to-grip, impact-absorbing bumpers, safety orange or tactical gray


Battery

  • Intelligent Li-Ion battery 3.7VDC @ 10600mAh, 38.7Whr
  • Operates for up to 20 hours on one charge
  • Charges in 2 to 4 hours
  • Battery changeable in field
  • Optimized for excellent performance in cold temperatures


Display

  • Active viewing area: 4.3" (109 mm) WVGA LCD TFT (800x480)
  • High visibility backlit LCD
  • Portrait or landscape orientation


Touchscreen

  • Projected capacitive touch interface “optically bonded” to display for increased visibility
  • Chemically-strengthened glass


Keyboard

  • Adjustable LED backlit keys
  • Five-way directional navpad
  • Numeric keypad (6 user-reassignable)
  • OEM configurable/customizable


Juniper RuggedTM

  • IP68 waterproof and dustproof
  • Operating temperature: -22F to 140F (-30C to 60C), Note: Bluetooth® wireless technology is rated to –4F (–20C)
  • Storage temperature: -22F to 158F (–30C to 70C)
  • Shockproof: multiple drops from 5' (1.5 m) onto concrete
  • MIL-STD-810G test procedures: Method 500.5 Low Pressure (Altitude); Method 501.5 High Temperature; Method 502.5 Low Temperature; Method 503.5 Temperature Shock; Method 506.5 Rain; Method 507.5 Humidity; Method 510.5 Sand and Dust; Method 512.5 Immersion; Method 514.6 Vibration; Method 516.6 Shock
  • Optional Class I, II, & III, Div 2 non-incendive rating for use in hazardous locations


Ports

  • COM1, RS-232C 9-pin D connector with 5VDC power output
  • USB host (Full A), USB client (Micro B)
  • 12, 24VDC input, 10-36V unregulated
  • 3.5 mm audio jack, supports speaker/ microphone or stereo output (pin detect)
  • I/O module OEM configurable/customizable
  • Optional docking port connections for charging and USB communication
  • 1.0GHz ARM Cortex A8 i.MX53 processor

OS & Software

  • Microsoft® Windows Embedded Handheld 6.5.3
  • Microsoft Office Mobile 2010* (Optional)
  • Multiple languages (English, French, Spanish, German, Portuguese)
  • 512 MB RAM
  • 8GB flash storage
  • User-accessible micro SD/SDHC slot

Wireless Connectivity Options

  • Bluetooth® wireless technology, 2.1 +EDR, Class 1.5
  • Wi-Fi® 802.11b/g/n with extended range
  • CDMA technology for use on the Verizon Network
  • 3.75G modem - Pentaband Worldwide (Geo 3G model only)
  • Frequencies: HSPA+/UMTS: 800/850/900/1800/1900/2100 MHz
Rental per day

$22.00

Prep*

$45.00

Reserve

Ask a question about this item

*(Does not include shipping or insurance)
