TEM2Go

#102036

TEM2Go

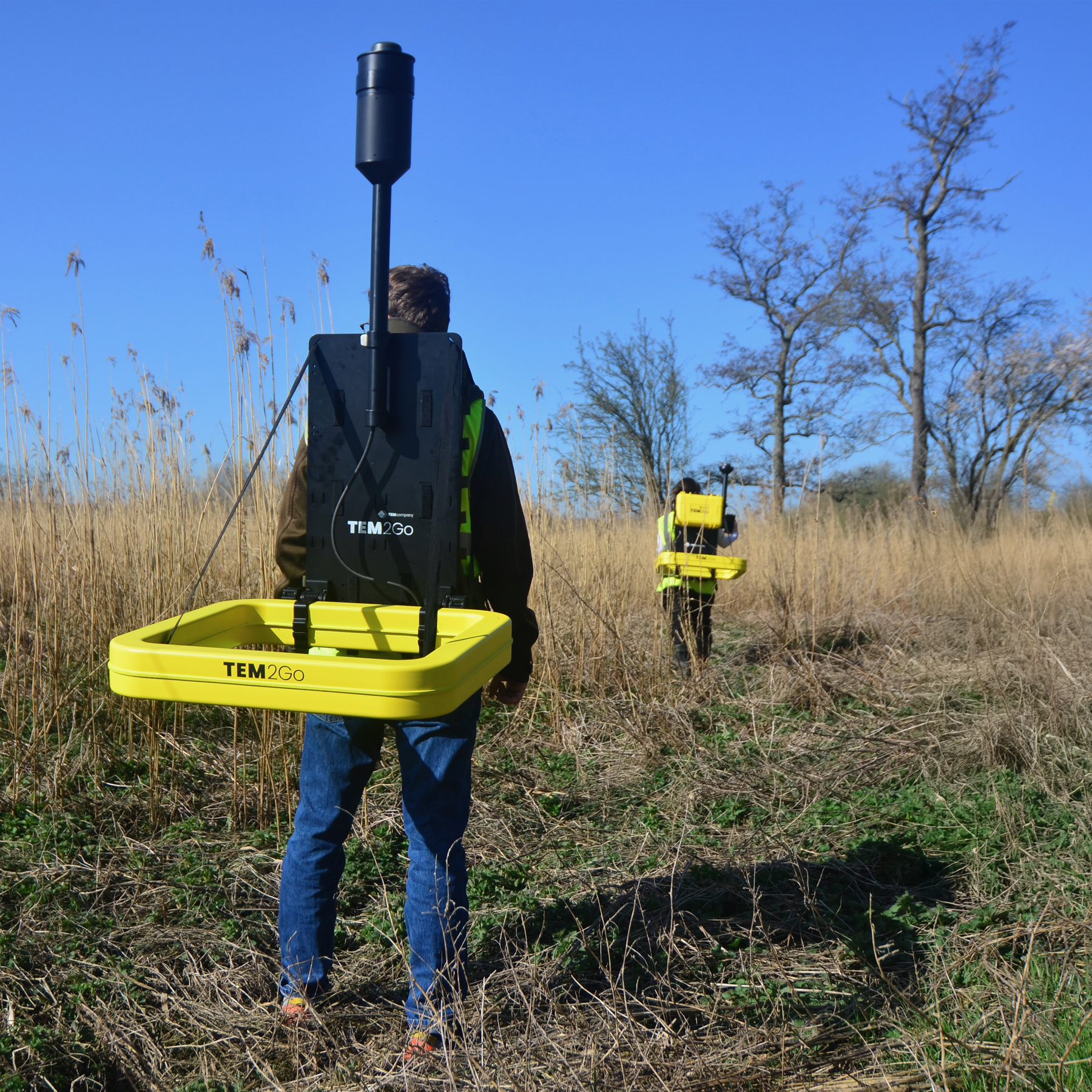

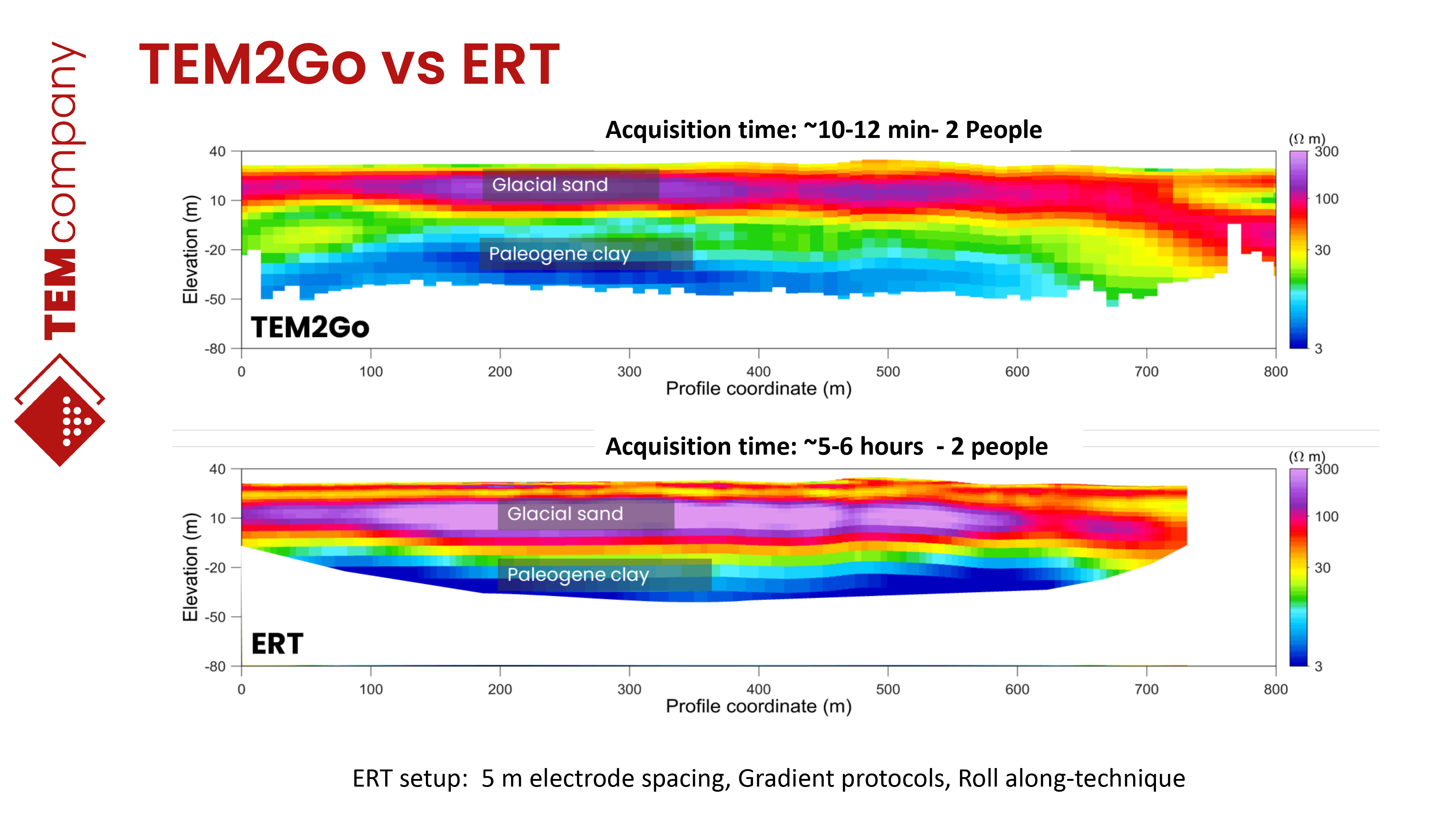

The TEM2Go delivers accurate data measured continuously while walking, capturing the conductivity structure of the subsurface to depths of 75 m, depending on the resistivity of the geological layers. If you're tasked with mapping conductivity targets in that depth zone, there is not another system that can match it for speed and accuracy. Built on a light, professional backpack frame, the TEM2GO has a significantly higher production rate than a heavy ERT system involving cable drums, steel electrodes and car batteries. It takes 10-12 minutes for two people to walk a line, campared to 5-6 hours for the same people, using considerably more effort to measure the same line with ERT. The TEM2GO is available for both rental or purchase through EXI.

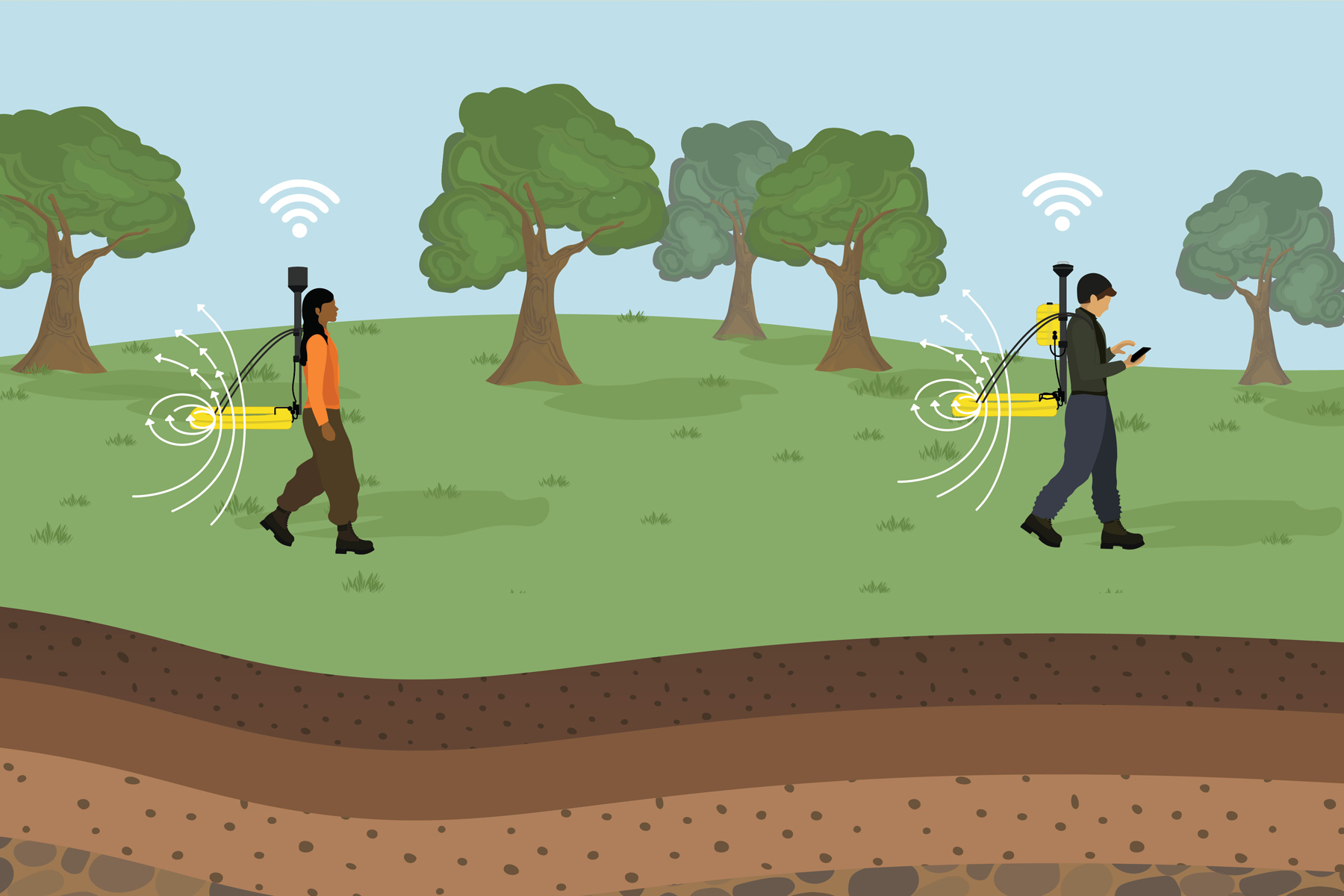

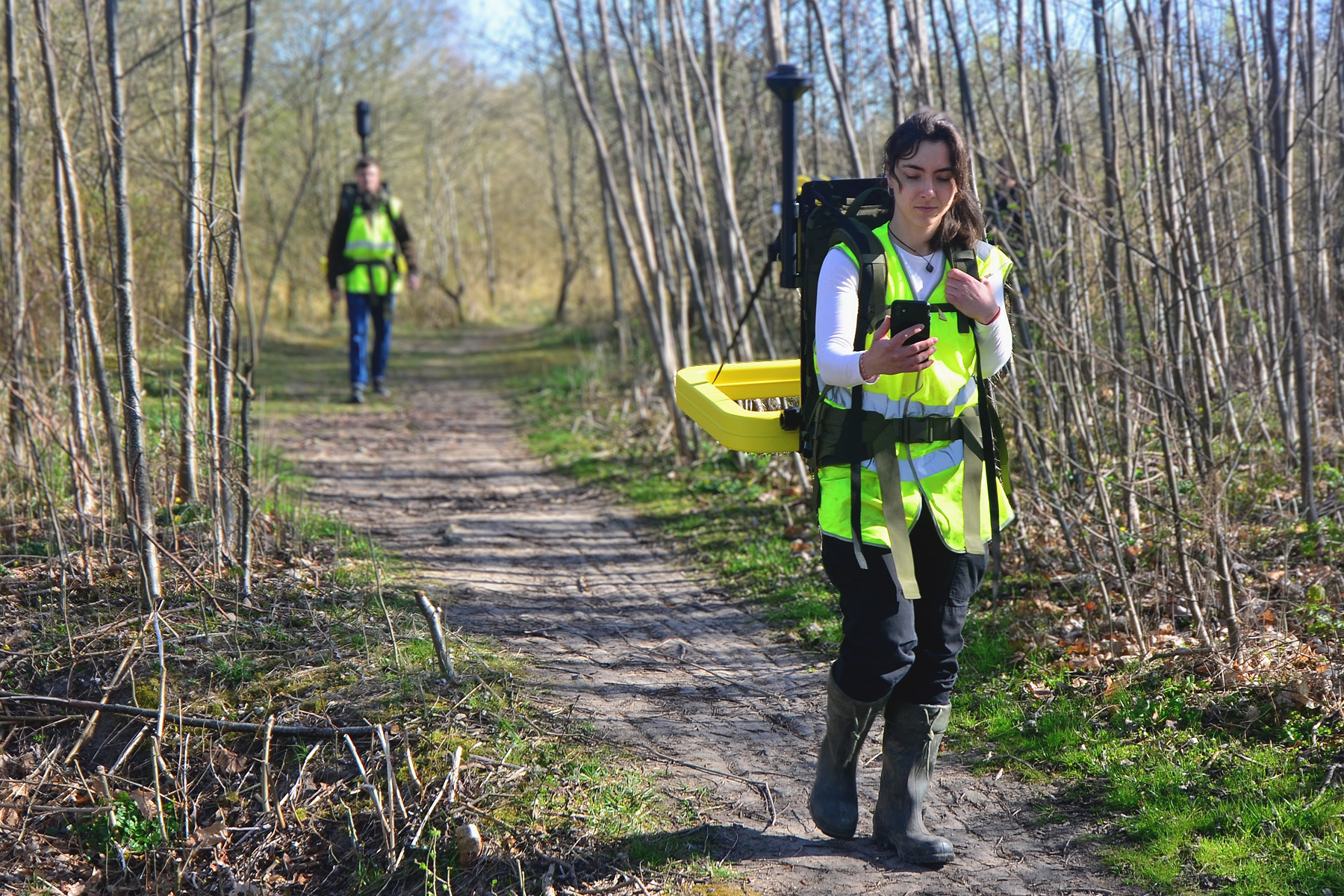

Operated via an Android or iOS App, the TEM2Go's wirelessly connected transmitter and receiver are separated by a distance of 15 – 20 m (50 - 65 ft).

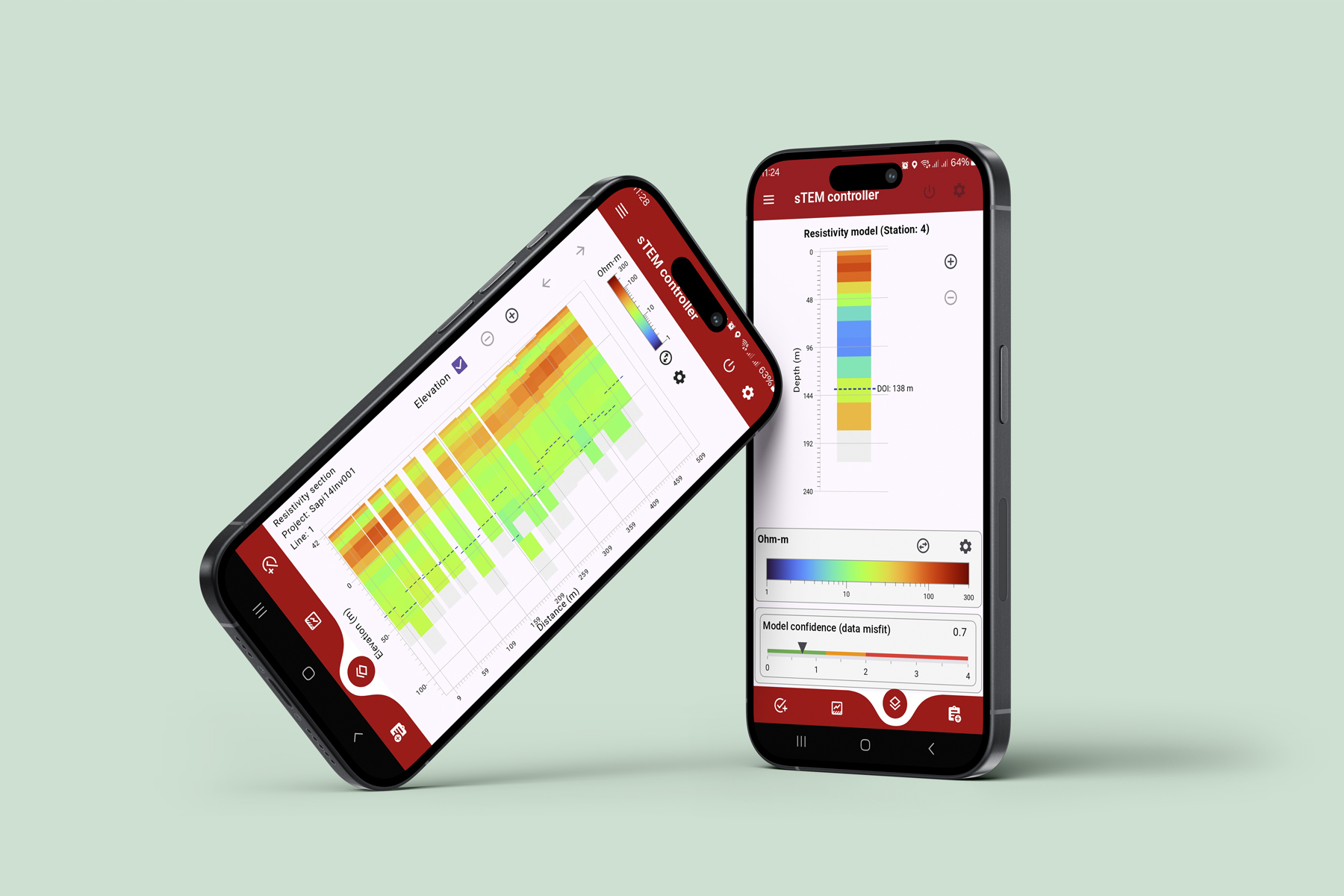

The TEM2Go has real-time processed data, inverted models, and a map display.

Configuration

Transmitter coil size – 65 x 65 cm (2 ft x 2 ft)

Transmitter output current – 1 Amp (turn-off time ~ 3 us) and 10 Amp (turn-off time ~ 6 us)

Transmitter weight – 15 kg (33 lbs)

Receiver coil sizes – 65 x 65 cm (2 ft x 2 ft)

Receiver weight -10 kg (22 lb)

Depth of investigation – From the surface to 75 m (246 ft), depending on geology

Independent wireless receiver – GPS position of transmitter and receiver plus independent distance measurement

Connectivity – WiFi, iOS & Android

Weight

55 lbs

Rental per day

$400.00

Prep^*

$225.00

Replacement Value

$55,000.00

Downloads

TEM2GO Brochure TEM2GO Description and Specifications

Ask a question about this item

^*(Does not include shipping or insurance)
