Seismic Geotomographie SH-wave source BIS-SH-DS
#109601
S-wave
BIS-SH | S-Wave Source

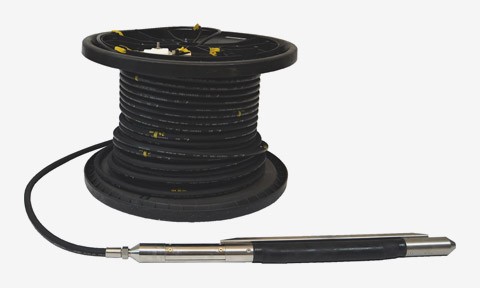

The borehole source BIS-SH generates horizontally polarized shear waves (SH) and compressional waves (P). The seismic signals are highly repeatable. The source works in dry or water filled boreholes and can be used in vertical or horizontal boreholes.
Energy released by the IPG5000 discharges through a system of electromagnetical coils adjacent to a copper plate. If the plate is rejected a mechanical impact to the borehole wall is generated. The borehole source is coupled to the borehole wall by a pneumatic clamping system (inflatable bladder). The orientation of the source is controlled from surface by a torsional stiff hose.
|
Generated wave types: |
SH/P |
|
Signal frequencies: |
Up to 4 kHz (depending on geology and borehole distance) |
|
Operational depth: |
Up to 200 m |
|
Source length: |
880 mm |
|
Source diameter: |
65 mm |
|
Source weight: |
8.5 kg |
|
Cable weight per metre: |
665 g |
|
Borehole diameter: |
75 - 100 mm (or larger if spacers are used) |
|
Clamping system: |
Inflatable bladder |
|
Orientation: |
Torsionally stiff hose |
|
Depth indicator: |
Cable marking every 2 m |
|
Connector: |
To Impulse Generator IPG5000 |
