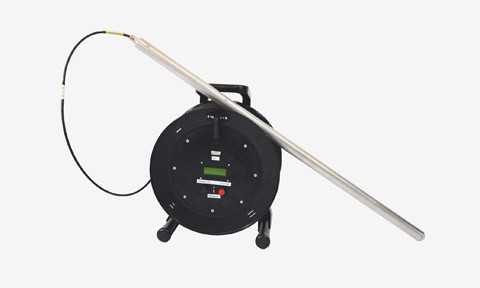

DevProbe1 | Deviation Probe
The Deviation Probe DevProbe1 is used to measure the borehole deviation. A three-axis magnetometer measures the azimuthal direction of the borehole and a dual tilt sensor provides information about the inclination. The probe is sealed and temperature compensated. Borehole deviation is required to determine the precise XYZ location of a seismic source or geophone inside a borehole. A software is provided to visualize and store the deviation data.
|
Operational depth: |
Up to 200 m |
|
Probe length: |
1235 mm |
|
Probe diameter: |
40 mm |
|
Probe weight: |
3.45 kg |
|
Cable weight per metre: |
62 g |
|
Cable strength: |
1700 N |
|
Borehole diameter: |
50 mm |
|
Azimuth range: |
0 - 360° |
|
Azimuth resolution: |
+/-1° @ tilt > 10° |
|
Tilt range: |
0 - 180° |
|
Tilt resolution: |
+/-0.1° |
|
Temperature range: |
0 to 135°C |
|
Depth indicator: |
Cable marker every 1 m |
|
Storage: |
On drum |
$140.00
$100.00
