Seismic Seismic Source GeoDAQ 5-24 channel seismograph

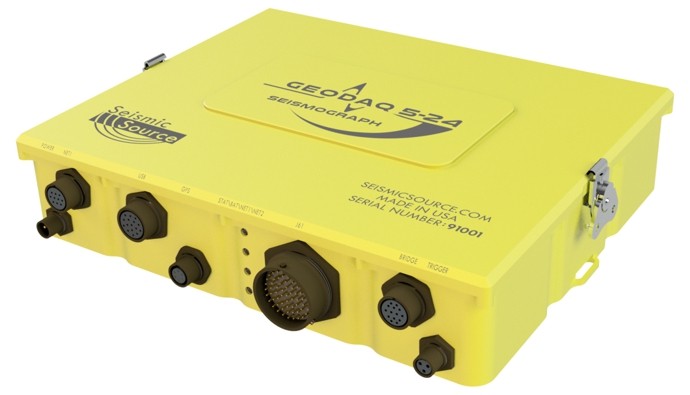

The GeoDAQ 5-24 is a high-resolution, 24-channel portable seismograph designed for stand-alone monitoring, refraction surveys, and distributed seismic reflection systems. It combines high-speed 24-bit ADC performance, compact size, low power operation, and rugged field construction.

GeoDAQ 5-24 is compatible with 61-pin spread cables and geophones, making it well suited for near-surface, engineering, refraction, and small-crew seismic applications.  For compatibility with 54 pin cables, please see the  DAQlink listing. Vscope software provides acquisition control, data QC, and file storage through industry-standard Ethernet.

The GeoDAQ 5-24 can operate as a small stand-alone seismograph or as part of a larger multi-unit acquisition system. It supports active-source recording, passive monitoring, automated event detection, downhole sensors, and larger source systems such as vibroseis, dynamite, and mechanical impulse sources.

Features

• 1 to 24 channels per seismograph node
• High-speed 24-bit ADC up to 64,000 samples per second
• Wide bandwidth from DC to 27 kHz
• Low distortion: better than 0.00008% THD at 500 sps
• Wide dynamic range greater than 124 dB at 500 sps
• Low noise: less than 0.15 µV RMS at 500 sps

• GPS clock discipline for continuous recording
• GPS time and position saved with data
• VHF/UHF radio timing support for underground use
• Trigger accuracy of ±1 microsecond at any sampling frequency

• Trigger on hammer switch for shot acquisition
• Trigger using GPS time for noise monitoring
• Trigger using LTA/STA for event monitoring
• Two trigger circuits available: standard and low-voltage input
• Pre-trigger delay up to 32 seconds
• Post-trigger delay up to 100 seconds

• 16 GB internal memory card standard
• Optional external USB-compatible 32 GB removable memory plug
• Ethernet data connection for command, control, and transfer
• Real-time data transfer support
• Compatible with cable, Wi-Fi, and cellular data connections

• Included mesh Wi-Fi adapter
• Conveniently connects multiple seismographs and notebook computers
• Built-in dual Ethernet network
• Dual Ethernet ports make it easier to connect GeoDAQ units together for high-channel-count systems
• Use network connection to configure the seismograph, monitor noise, and collect data

• Instrument tests for distortion, cross-feed, CMRR, impulse, and noise
• Sensor tests for resistance, frequency, damping, and sensitivity
• Internal tests verify the instrument and geophone spread

• Operate as a stand-alone seismograph
• Use with a sledgehammer and hammer switch
• Operate as part of a larger seismic system
• Use with vibroseis sources and Force 3 controllers
• Use with dynamite sources and Boom Box blasters
• Use with mechanical impulse sources and RTM3 units
• Compatible with SourceLink acquisition and crew management software

• Power requirements: 10 to 28 VDC
• Power consumption: less than 0.13 watts per channel
• Size: 328 x 282 x 72 mm / 12.9 x 11.1 x 2.8 inches
• Weight: 3.1 kg / 6.8 pounds
• Operating temperature: -40°C to 80°C
• Sturdy milled aluminum case with IP67 weatherproof seal
