Seismic Geotomographie IPG800 Impulse Generator
#109600

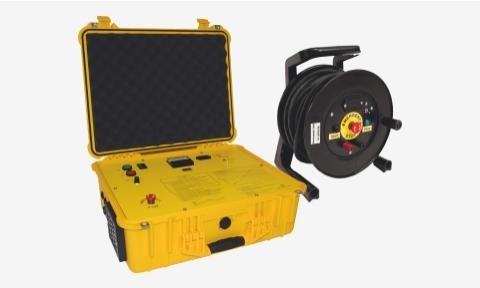

IPG800 | Impulse Generator
The Impulse Generator IPG800 is the high voltage supply to the seismic borehole source BIS-SH-DS. The energy is stored in capacitors which discharge through a mechanical switch. The lightweight IPG800 is incorporated in a robust PeliTM case.
The IPG800 is operated by a Remote Control Unit (RCU) which is used to start a pre-defined sequence of shots or to stop the operation. The RCU is connected to the seismograph to send an accurate trigger signal.
|
Impulse voltage: |
800 V |
|
Impulse energy: |
1000 J |
|
Power supply: |
2 x 12 V (car batteries) |
|
Shot release: |
Single or continuous (5/10 shots) |
|
Repetition rate: |
10 s |
|
Dimensions: |
53 x 43 x 23 cm |
|
Weight: |
15 kg |
|
Special features: |
Impulse counter |
|
|
Test trigger |
|
|
Emergency OFF button |
|
RCU: |
Start/stop operation |
|
|
Trigger output |
|
|
Emergency OFF button |
$260.00
$105.00
Ask a question about this item
*(Does not include shipping or insurance)
