Magnetometers Geometrics Cesium Vapor Magnetometer

#106020

The Geometrics 858 is a world-class cesium vapor magnetometer used to delineate magnetic targets in a variety of exploration applications: general geology, groundwater, minerals, unexploded ordnance, underground storage tanks, archaeology.

The G-858 MagMapper uses a graphical interface to make survey design and data acquisition quick and efficient. Various modes of operation allow the user to custom design a survey grid for their particular needs. The operator also has the ability to view his/her position on the grid and the current data profile during the survey. Sensitivity, resolution, and recording rate of the cesium magnetometer are user selectable.

G-858 data acquisition offers either continuous or discrete station recording. The high sampling rate of the instrument in continuous mode allows the operator to survey an area at a fast walking pace. A wider search radius can be achieved by using a gradiometer configuration. As a result, over-all costs are inherently lower while data quality remains high.

Features:


in-field coordinate mapping system
high sensitivity: detects single drum at 3m
Immediate User Feeback: display coordinate grid, survey direction and 5 stacked profiles of mag data
easy to use: produce hard-copy maps within minutes of connection to PC
options: symultaneous vertical or horizontal gradiometer, GPS positioning, target analysis software

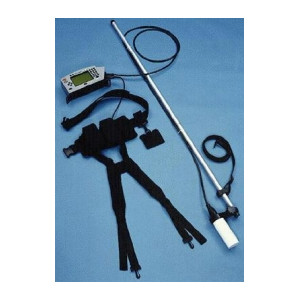

The G-858 MagMapper system comprises a belt-mounted display/logging console connected to a cesium sensor mounted on a handheld counterbalanced staff. The console contains electronics to acquire magnetic field data with position and display it on an LCD screen for review and edit. The console stores high volumes of data in memory. Following the survey the data is transmitted at high speed to a processing computer for detailed analysis.




Dimensions

32 X 12 X 20 inches

Weight

58 lbs

Rental per day

$112.00

Prep*

$95.00

Reserve

Ask a question about this item

*(Does not include shipping or insurance)
